Forged Flanges

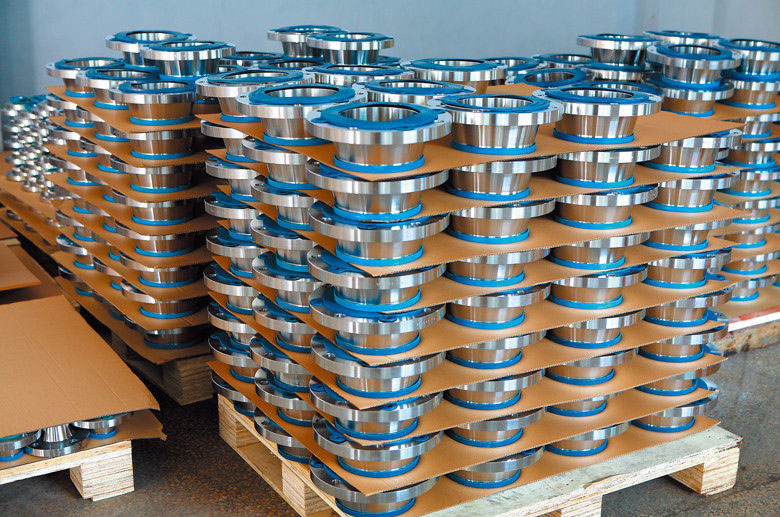

Stainless Steel Forged Flanges
PRODUCT RANGE : STAINLESS STEEL FORGED FLANGES
Fabricated using close grained and high tensile iron, our range of steel forged flanges and plate flanges are precisely tapped to ABS standards and bear a smooth and clean coating. These forged flanges and alloy steel flanges are flawless and can be opened chamfered for easier assembly and installation which results in tight draw and easy take up.
Stainless Steel Forged Flanges
| Stainless Steel Forged Flanges: ASTM A 182, A 240 Forged Flanges Grade : :
| ||
FORM |
Blind Flanges :: Blind Flange is use to closes the end of a pipe. Fabricated using finest quality of carbon steel, our range of blind plate flanges are widely used to close the ends of pipes, valves, pressure vessel openings and other channels where one end needs to be blanked off. These blind flanges, blind plate flanges can be customized on varying parameters with the following specifications: Stainless Steel: ASTM A 182, A 240 Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750 Carbon Steel: ASTM A 105, ASTM A 181 Alloy Steel: ASTM A 182, GR F1, F11, F22, F5, F9, F91 Nickel Alloys: Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 Copper Alloys: Copper, Brass & Gunmetal Size : 1/8" NB TO 48"NB. Class : 150#, 300#, 400 #, 600#, 900#, 1500# & 2500 #. |
Threaded Flanges :: Threaded Flanges are widely used in special circumstances with their main advantage being that they can be attached to the pipe without welding. We are one of the leading manufacturer and supplier of steel threaded flanges in India, we can supply stainless steel, carbon steel and nickel alloy threaded flanges. Threaded flanges, steel threaded flanges are available with following specifications: Stainless Steel: ASTM A 182, A 240 Grade: F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Size : 1/8" NB TO 48"NB. Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #. |
Screwed Flanges :: We are one of the leading manufacturer of screwed flanges in India, we can supply stainless steel,carbon steel and nickel alloy flanges, the method includes forging and casting. Also, we can produce as per your drawings and specifications. Screwed flanges are available with following specifications: Stainless Steel: ASTM A 182, A 240 Grade: F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205 Size : 1/8" NB TO 48"NB. Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #. |
Slip On Flanges :: Slip on flanges, a solid, circular pipe flange which is slipped over the end of a pipe and welded in. We offer high quality slip on flanges that are manufactured stringently following latest technology. Precisely engineered, these slip flanges possess the following features:- Stainless Steel: ASTM A 182, A 240 Duplex stainless steel UNS S31803, 2205, Size : 1/8" NB TO 48"NB. |
Socket Weld Flanges :: Socket weld Flange is a device that is welded to the end of pipe so that the pipe can be bolted to another pipe with a similar flange. Socket weld flanges enable a pipe to be disconnected and reconnected with ease. Available in a spectrum of shape and sizes, our forged light weight weld flanges are manufactured using superior grade material such as stainless steel, carbon steel and known for their durability and performance. These weld flanges are available in following specifications: Stainless Steel: ASTM A 182, A 240 Duplex stainless steel UNS S31803, 2205 Size : 1/8" NB TO 48"NB. |
Weld Neck Flanges :: A flange with a heavy welding neck which is hot formed from a circular section of steel plate having a small co-axial hole in the center. Weld Neck Flanges are available with following specifications: Stainless Steel: ASTM A 182, A 240 Grade: F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750 Carbon Steel: ASTM A 105, ASTM A 181 Alloy Steel: ASTM A 182, GR F1, F11, F22, F5, F9, F91 Nickel Alloys: Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 Copper Alloys: Copper, Brass & Gunmetal Size : 1/8" NB TO 48"NB. Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #. |
| ANSI Flanges : :
We offer a vast range of ANSI flanges that are available in different grades and sizes. Our range encompasses welding neck flange, slip on flange, threaded flange, socket welding flange, blind flange, orifice flange, etc. Procured from the reputed vendors, these flanges are appreciated for their corrosion resistance, compressive strength and durability. Standard: ANSI B16.5, AANSI B16.47, AMSS SP44, AANSI B16.36, AANSI B16.48 Types: Welding neck flange, slip on flange, threaded flange, socket welding flange, blind flange, orifice flange, ring joint flanges, long welding neck flange. Pressure Grade: |
| DIN Flanges : :
We have with us a range of DIN flanges that includes welding neck flange, slip on flange, threaded flange, socket welding flange, blind flange and others. Our range is sourced from the trustworthy vendors of the industry to ensure superior quality to the clients. Further, our range is quality tested at our end before passing it the clients. Standard: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 Types: Welding neck flange, slip on flange, threaded flange, socket welding flange, blind flange, orifice flange, ring joint flanges, long flanges, screwed flange, lapped joint flange, reducing flange, spectacle flange. Pressure Grade: 6Bar, 10Bar, 16Bar, 25Bar, 40Bar |
| BS Flanges : :
Procured from the reliable sources of the industry, we have with us a qualitative range of BS Flanges. Our range of BS flanges include Slip on flange, hubbed threaded flange, lapped pipe end flange, plate flange and many others. These are available in varied sizes and specifications to suit the diverse application needs of the clients. BS 4504 sec 3.1 : Welding neck flange(111/134), hubbed slip on flange(112), hubbed threaded flange(113), lapped pipe end flange(133), plate flange(101), loose plate flange(102), loose plate with weld-neck flange (104), blank flange(105) Pressure Grade: pn2.5 to pn40 Standard BS 4504 (part-1) : welding neck flange, hubbed slip-on hubbed threaded, plate flange, loose plate with weld on plate collar, blank flange Standard BS 1560 : Welding neck flange, socket welding flange, slip-on boss flange, blind flange, screwed boss flange, lapped flange. Pressure Grade: 150, 300, 400, 600, 900, 1500, 2500 Standard BS 10 : Welding neck flange, plate slip-on flange, screwed boss flange, slipon boss flange, blind flange Type Table: d, e, f, h Size: 1/2" nb to 48" nb |
| JIS Flanges :: We bring forth an assortment of JIS flanges that are extensively used in automobile, petroleum, aerospace, machine building and many other industries. These flanges are procured from reliable vendors who are carefully selected by our experienced procuring agents. Our range such as machine building jis flanges is tested at our premises on various quality parameters to ensure maximum satisfaction to the clients. In addition, we offer these flanges in proper packaging and at highly competitive prices. JIS Standard, Material: SUS 304 & 316 made by sand casting or forged thread conform to bs21, 1973 taper thread. Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750 |
ASTM / ASME FLANGES Riton Metal Industries SUPPLY ALL KINDS OF FLANGES |
|
Duplex Steel Flange Gradewise Stock At a Glance:-
|
Nickel Alloys Flange Gradewise Stock At a Glance:-
|
Available Stainless Steel Flanges Products Stock at Riton Metal Industries
|
Din/Jis/Asmi Flanges Stock At a Glance:-
|
List of Countries Where Riton Metal Industries supply Stainless Steel Flanges:- |
In India where Riton Metal Industries supply Flanges :-
|
