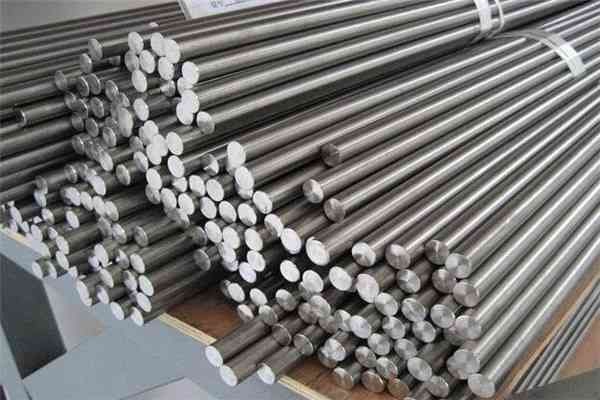

| | Our organization is involved in manufacturing and supplying a wide assortment of round bars which are exclusively used in machine components, surgical & medical equipments, valves, pumps and many more areas. Fabricated with high graded raw materials these products are available in various diameter, grades and length. With the salient features of durability, stiffness and length tolerance these products are available in customized solutions also. Specifications application :
machined components, pump shafts, valves, fasteners, machine tools, dairy equipments, surgical & medical parts, threaded bars, studs, bolts, pins, hinges and handles. condition | cold drawn & polished | cold drawn, centreless ground & polished | cold drawn, centreless ground & polished (strain hardened) | grades | 20, 202, 303, 304, 304l, 310, 316, 316l, 32, 410, 420, 416, 430, 431, 430f & others | 304, 304l, 316, 316l | diameter (size) | 2 mm to 5mm (1/8" to 3/16") | 6mm to 22m (1/4" to 7/8") | 10mm to 40mm (3/8" to 1-1/2") | diameter tolerance | h9 (din 671),h11
astm a 484 | h9 (din 671)
astm a 484 | h9 (din 671),h11
astm a 484 | length | 3/4/5. 6/6 meter
(12/14ft/20feet) | 3/4/5. 6/6 meter
(12/14ft/20feet) | 3/4/5. 6/6 meter
(12/14ft/20feet) | length tolerance | -0/+200mm or
+100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”) | -0/+200mm or
+100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”) | -0/+200mm
(-0 ”/+1 feet) | we can give chamfering of 30 or 45 degrees on one or both the ends with our dedicated chamfering machine. For strain-hardened bars, we can supply in b8(304) and b8m(316) in class1 and class2. | | Round Bars (Peeled/Turned) | We specialize in producing round bars which are peeled or turned which are used for center grinding, rolling and burnishing purposes. Available in various size, shapes, lengths and dimension these products are well known for their resistance power, dimensional accuracy and length tolerance. Specifications: condition | peeled, centreless ground & polished | peeled & polished | peeled
(rough turned) | forged,
rough turned | grades | 20, 202, 303, 304, 304l, 310, 316, 316l, 321, 410, 420, 416, 430, 431, 430f & others | 304, 304l, 316, 316l, 410, 416, 420, 431 | 303, 304, 304l, 316, 316l, 410, 416, 420, 431 | diameter (size) | 20mm to 85mm
(3/4 ” to 3--1/4 ”) | 85mm to 140mm
(3-1/4 ” to 4--3/4 ”) | 25mm to 140mm
(1 ” to 5--1/2 ”) | 150mm to 400mm (6 ” to 16 ”) | diameter tolerance | h9 (din 671)
astm a 484 | h11 | k12/k13
(din 1013) | -0mm/+3mm
(-0 ”/+0. 12 ”) | length | 3/4/5. 6/6 meter
(12/14ft/20feet) | 3/4/5. 6/6 meter
(12/14ft/20feet) | 3/4/5. 6/6 meter
(12/14ft/20feet) | 3 meter -5 meter
10 feet -16 feet | length tolerance | -0/+200mm or
+100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”) | -0/+200mm or
+100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”) | -0/+1000mm or 500mm (-0 ”/+3 feet or +2 feet) | -0/+2 meter-
-0/+6 feet | We can give superior surface finish and straightness tolerance for Pump Shaft Quality by additional processes such as straightening, roller burnishing, and centre less grinding. Bars can be packed in wooden boxes, with each bar protected with plastic rings to avoid bending and scratches. | Black Bars (Hot Rolled & Forged) Our offered range of black bars is widely used in piping, fittings, machine tools, dairy equipments and in printing press. Fabricated with premium quality raw materials these products are available in sizes, shapes, dimensions and lengths. With the facilities of durability, high tensile strength and resistance power these products are highly demanded in the market. Specifications: condition | hot rolled, decoiled from coils | hot rolled | forged | grades | 303, 304, 304l, 316, 316l, 317l, 347, 321, 309,310, 410, 416, 420, 431, 440c | diameter (size) | 10 mm to 24 mm | 25 mm to 25 mm | 150mm to 400 mm | length | 3 to 6 meter | 3 to 6 meter | 3 to 6 meter | heat treatment | annealed / solution annealed / quenched & tempered / hardened &tempered | | | 17 4ph | We specialize in manufacturing and supplying a wide range of Alloy 17 4PH is a precipitation hardening martensitic stainless steel with Cu and Nb/Cb additions. Made of premium quality raw materials procured from authorized vendors these products are source of high strength, corrosion resistance, hardness and excellent mechanical properties. We offer these products at a reasonable price with the provision of further customization. Specifications: Hardness : up to 300 °C / 572°F Yield strength: up to 1100-1300 MPa (160-190 ksi) Temperature tolerance: 300°C (572°F) Corrosion resistance: grade 304 or 430.
| | 15 5ph | 15PH stainless steel products are known as the modified version of 17-4 PH developed in 60’s. the range of this UNS S15500 stainless steel is enabled with more refined which helps it to resemble to the process in which it was being developed. These products are tough, have excellent corrosion resistance and robustness. Apart from, good fabricating characteristics and temperature hardening are also important features of these products. Due to the toughness in the transverse direction of the materials these products are good option and preferably used by many industries as main alloy. Products partially or completely constructed of 15500 include: - Aircraft components
- Cylinders
- Engine parts
- Fittings
- Gears
- Hallow shafts
- Marine gas turbine compressor sections
- Paper mill equipment
- Shafts
- Valve
Specifications: bar specifications | uns | type | ams | astm | federal | characteristics | s15500 | 15 - 5 ph® | 5658
5659 | a-564 | - | 15 - 5 ph is similar to 17-4 but superior transverse ductility and toughness. |
chemistry analysis | c | mn | p | s | si | cr | ni | mo | cu | other | m/nm | . 07 | 1. | . 03 | . 015 | 1. | 14. - 15. 5 | 3. 5 - 5. 5 | . 5 | 2. 5 - 4. 5 | cb + ta = 8xc min - . 45 max | m | | | 440c Bars | One of the preferred option for metal alloys chosen by almost all industries is 440C bars. These products are capable to sustain the hardness, toughness, and strength and resistance power after heat treatment given for a long time. Due to the presence of carbon content at a greater extent in these products, they exhibit excellent mechanical characteristics and are well suited for the applications as ball bearings and valve parts. The main and single difference between 440A & 440B is in the amount of carbon content (0.60 - 0.75% and 0.75 - 0.95% respectively), the latter have lower attainable hardness but higher corrosion resistance. Although all three versions of this grade are standard grades, in practice 440C is more available than the A or B variants. Composition grade | c | mn | si | p | | cr | mo | ni | n | 440a | min. max. | 0. 65 0. 75 | - 1. 00 | - 1. 00 | - 0. 040 | - 0. 030 | 16. 00 18. 00 | - 0. 75 | - | - | 440b | min. max. | 0. 75 0. 95 | - 1. 00 | - 1. 00 | - 0. 040 | - 0. 030 | 16. 00 18. 00 | - 0. 75 | - | - | 440c | min. max. | 0. 95 1. 20 | - 1. 00 | - 1. 00 | - 0. 040 | - 0. 030 | 16. 00 18. 00 | - 0. 75 | - | - | | | Copper Round Bar | | A wide range of copper round bars is manufactured and supplied by us. Made of high graded copper alloys these bars are available in several diameters, sizes and varieties and not hollow inside. These rods are exclusively used in many industrial areas due to the extensive features of durability, sustainable property to heat & corrosion and robustness. | | Inconel Rod | We present a wide range of inconel rods which find wide applications in constructional and industrial purposes. Made of high graded raw materials these products are well admired by our clients due to the excellent mechanical properties and good resistance power against corrosion and heat. The major application areas are furnace muffles, electronic components, heat treating equipment, steam generator tubing and heat exchangers. Specifications: - UNS 8800 (INCONEL 800)
- UNS 8825 (INCONEL 825)
- UNS 6600 (INCONEL 600)
- UNS 6601 (INCONEL 601)
- UNS 6625 (INCONEL 625)
| | Monel Round Bars | Monel round bars offered by us are highly durable and corrosion resistant, made of Monel400. In order to meet the demands of our domestic and international clients, they come in option of varied dimensions, lengths and thickness. Our range of monel round bars are available in different grades.
StandardASTM / ASME SB 164
Grades:
- Monel 400 (UNS No. N04400)
- Monel 500 (UNS No. N05500)
| | Hastelloy Rods | We offer wide range of Hastelloy Rod like Hastelloy c-276 rod, Hastelloy c rod, Hastelloy c-4 rod, Hastelloy c 2000 rod and many more.
We offer the Hastelloy rods as per the following grades :
GRADES AS UNDER - Hastelloy C-4 (UNS No. N06455)
- C-276 (UNS No. N10276)
- Hastelloy C 22 (UNS No. N06022)
- Hastelloy C 2000
| | Titanium Round Bars | We offer a comprehensive range of titanium round bars for our clients spread across the globe. Known for resistant to general corrosion, crevice corrosion, intergranular attack, pitting and stress corrosion cracking, our range of titanium round bars are widely used by our clients spread across the globe.
Specifications
Standard GB / T 2965-1996
* ASTM B-348, ASTM F 136
* Grades GR 1, GR -2, GR-3, GR-4, GR-5 | | Nickel Round Bars | Our range of nickel round bars are fabricated in accordance with specified industrial standards. These are made of nickel 200 and have wide eminence in the national as well as international markets. Manufactured from finest quality of materials, these nickel round bars are resistant to corrosion and therefore last for long time. In order to provide the clients optimal satisfaction, we offer these nickel round bars according to their specifications.
StandardASTM / ASME SB 160
GradesUNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 ) | | Alloy 20 Round Bars | Alloy 20 is a nickel-iron-chromium alloy with some amounts of copper and molybdenum. The nickel in this alloy makes it resistant to chloride-ion stress-corrosion cracking. On the other hand, copper and molybdenum make it resistant to reducing environments and also provide good resistance to pitting and crevice corrosion. The chromium makes it suitable for work with chemicals like nitric acid, by adding resistance to oxidizing environments. The molybdenum, is also essential for this alloy as it helps to reduce the effect of carbide precipitation during welding and thereby increasing alloy's resistance to intergranular corrosion.
Chemical Analysis of Alloy 20
| C | Ni | Mo | Co | Ir | M | Cr | Si | Su | Ti | Al | Pho | | .19.00-21.00 | 32.00-38.00 | 2.00-3.00 | 3.00-4.00 | Bal. | 2.00max | 0.07max | 1.00max | 0.035max | | | 0.045max |
| Duplex Steel Round | C | Ni | Mo | Co | Ir | M | Cr | Si | Su | Ti | Al | Pho | | .19.00-21.00 | 32.00-38.00 | 2.00-3.00 | 3.00-4.00 | Bal. | 2.00max | 0.07max | 1.00max | 0.035max |
|
| 0.045max | Bars | Offering precisely designed stainless steel and duplex steel round bars that are manufactured with the assistance of skilled experts and advance machines. Widely appreciated for their dimensional accuracy and sturdy construction, our range can be availed in different specifications. Use of qualitative material for manufacturing them, assures quality, sturdiness, reliable and efficient performance. These round bars are available for our clients, at most competent price range.
ASTM / ASME SA 276 UNS NO. S 31803, S 32205, S 32550, S 32750, S 32760. | | Super Duplex Steel Round Bars | We are one of the leading stockiest and exporters of Super Duplex Round bar, which are imported by us directly from European and American Mills. These High corrosion Super Duplex Material are used in Oil & Gas, Heat Exchanges, Aerospace , Pharmaceutical , Defense
- Range: 6mm dia 300mm dia ( Dia in Inches 10 ).
- Standard: ASME SB 4446 /AMS 5666 /5837 ASME SB- 564
- Form: Round, (Square, Rectangular bar: Forged ).
Round Bar in Super Duplex UNS S32750 & S32760 | |
