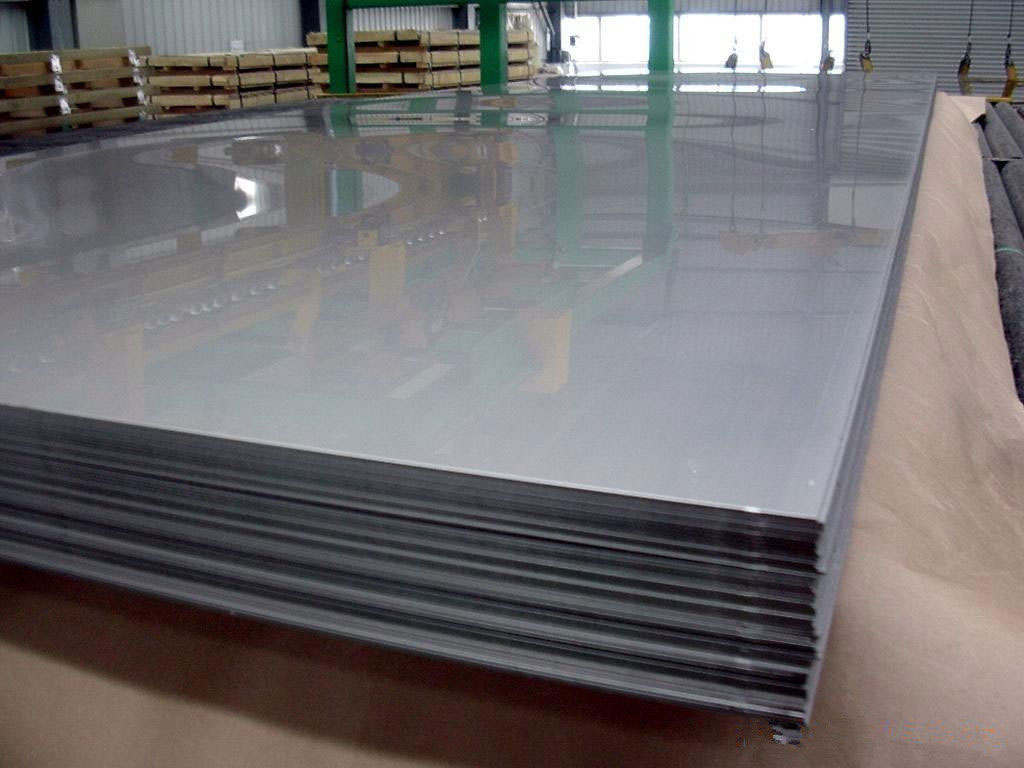

Super Duplex Stainless Steel Sheet/Plates

Suppliers of Stainless Steel Super Dulpex Sheets, Plates, Coils

Super Duplex Steel Sheet Plate Stockist Manufacturers Suppliers Exporters in Mumbai India

Super Duplex Sheets Plates Coils

Stainless Steel Super Duplex and Duplex Grades


Super Duplex Steel Sheet Plate

Super Duplex Steel Sheet Plate


Super Duplex Plates Suppliers – 2507, UNS S32750, UNS S32760 Stainless Steel Coils, Sheets, Plates


Our Product Range
Stainless Steel Forged Fittings Stainless Steel A182 304 Forged Fittings Stainless Steel A182 304 Forged Fittings
Stainless Steel A182 316 Forged Fittings Stainless Steel A182 316L Forged Fittings Stainless Steel A182 317 Forged Fittings
Stainless Steel A182 317L Forged Fittings Stainless Steel 904L Forged Fittings Duplex Steel Forged Fittings
Duplex Steel ASTM A182 F51 Forged Fittings Duplex Steel ASTM A182 F60 Forged Fittings Carbon Steel Forged Fittings
Carbon Steel ASTM A105 Forged Fittings Carbon Steel ASTM A350 LF2 Forged Fittings Carbon Steel ASTM A106 Gr.B Forged Fittings
Carbon Steel ASTM A234 WPB Forged Fittings Alloy Steel Forged Fittings Alloy Steel A182 Forged Fittings
Copper Nickel Forged Fittings SMO 254 Forged Fittings Alloy 20 Forged Fittings
Monel Forged Fittings Monel 400 Forged Fittings Titanium Forged Fittings
Hastelloy Forged Fittings Hastelloy C276 Forged Fittings Hastelloy C22 Forged Fittings
Inconel Forged Fittings Inconel 600 Forged Fittings Inconel 625 Forged Fittings
Inconel 800 Forged Fittings Inconel 825 Forged Fittings Inconel X-750 Forged Fittings

Super Duplex Stainless Steel – Alloy 2507 (UNS S32750 and UNS S32760) Specifications

  1. Super Duplex Plates, Sheet, Coil, and Strip: ASTM A240, ASME A 240
  2. Super Duplex Seamless Pipes / Tubes: ASTM A 789 / 790, ASME SA 789 / 790
  3. Super Duplex Welded Pipes / Tubes: ASTM A 789 / 790, ASME SA 789 / 790
  4. Super Duplex Bars, Rods, Wire: ASTM A 276 / 479, ASME SA 276 / 479
  5. Super Duplex Pipe Fittings & Flanges: ASTM A 815, ASME SA 815
  6. Super Duplex Forged Flanges: ASTM A182 Grade F55
  7. Super Duplex Forgings: ASTM A473

Stainless Steel Super Duplex Sheets/Plates

STAINLESS STEELTRADENAMEUNS NO.WERKSTOFF NO.DENSITY (G/CM3)
Super DuplexF55 / 2507, F53S32760 / S327501.4501 / 1.44107.805

Chemical Composition, % of Super Duplex – S32760 Grade Stainless Steel


CRNIMOCWCU
24.0-26.06.0-8.03.0-4.00.030 Max0.5-1.00.50-1.0

NMNSIPSFE
0.2-0.31.00 Max1.0 Max0.03 Max0.01 MaxBalance

Chemical Composition, % of Super Duplex – S32750 / 2507 Grade Stainless Steel

CRNIMOCNMN
24.0-26.06.0-8.03.0-5.00.030 Max.24-.321.20 Max
SiCuPSFe
0.80 Max0.50 Max0.035 Max0.020 MaxBalance

Super Duplex 2507 Stainless Steel (UNS S32750 and UNS S32760) Physical & Mechanical Properties

 SUPER DUPLEX STAINLESS STEEL
Density7.805
Melting Range,℃1350 ℃
Elongation %15 min.
Tensile Strength (Mpa)800
Yield Strngth (Mpa)550
Hardness (Brinell)270 max

Grade UNS ASTM/ASME Werkstoff
DuplexS31803A240 / F511.4462
Super DuplexS32750A240 / F551.4410
Super DuplexS32760A240 / F531.4501
Lean DuplexS32304A2401.4362
6 MolyS31254A240 / F441.4547

Duplex & Super Duplex Plate, Sheet, and Bar Stock

Grade Sheet (mm) Plate (mm) Bar (mm) [Diameter]
UNS S318031.50 – 3.005.00 – 100.0076.20 – 457.20
UNS S323042.005.00 – 50.00-
UNS S327503.005.00 – 50.0012.70 – 304.80
UNS S32760-5.00 – 50.0012.70 – 304.80

Super Duplex Stainless Steel

UNS S32750 & UNS S32760

Super Duplex Plate/Sheet
Super Duplex Seamless & Welded Tube
Super Duplex Seamless & Welded Pipe
Super Duplex Round Bar
Super Duplex Flanges F53/F55
Super Duplex Specialty Forgings
Super Duplex Seamless & Welded BW Fittings

Trade NameUNSSuper Duplex Industry SpecificationsChemical CompositionMin.Tensile
(KSI)
Min.Yield
(KSI)
Elongation
%
SAF 2507®
UNS S32750
ASTM A182 F53, A240, A276, A479, A789, A790, A815, A928, A988
SAE J405
C 0.030 max
Cr
 24.0-26.0
Cu 0.5 max
Mn 1.20 max
Mo 3.0-5.0
N 0.24-0.32
Ni 6.0-8.0
P 0.035 max
S 0.020 max
Si 0.8 max
1168015

UNS S32760ASTM A182 F55, A240, A276, A314, A473, A479, A789, A790, A815, A928, A988
SAE J405
C 0.03 max
Cr
 24.0-26.0
Cu 0.5-1.0
Mn 1.0 max
Mo 3.0-4.0
N 0.2-0.3
Ni 6.0-8.0
P 0.03 max
S 0.01 max
Si 1.0 max
W 0.5-1.0
 1098025

This is a Duplex alloy stainless steel designed to feature high strength, resistance to pitting, stress corrosion cracking, erosion corrosion and corrosion fatigue, crevice corrosion and strong weldability.

Super Duplex Applications

Oil and gas industry equipment,
Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems,
Chemical process industries, heat exchangers, vessels, and piping,
Desalination plants, high pressure RO-plants and seawater piping,
Mechanical and structural components, high strength, corrosion-resistant parts,
Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping.

Super Duplex Corrosion Resistance

The high chromium and molybdenum content of Super Duplex makes it extremely resistant to uniform corrosion by organic acids like formic and acetic acid. Super Duplex also provides excellent resistance to inorganic acids, especially those containing chlorides.

The pitting Resistance equivalent of Super Duplex, calculated by PREN = Cr + 3.3Mo + 16N, will exceed 40 in most material forms.
