Riton Metal Industries is specialized in manufacturing and supplying of Inconel Forged Fittings , Pipe Fitting, Forged Fittings, Butt weld fittings in Stainless steel, alloy Steel & carbon Steel since 1991, we manufacture wide range of Inconel Forged Fittings such as Inconel Forged 90 Deg Socket weld Elbow, Inconel Forged 90 Deg Screwed-Threaded Elbow, Inconel Forged 45 Deg Socket weld Elbow, Inconel Forged 45 Deg Screwed-Threaded Elbow, Inconel Forged Socket weld Equal Tee, Inconel Forged Screwed-Threaded Equal Tee, Inconel Forged Socket weld Unequal Tee, Inconel Forged Screwed-Threaded Unequal Tee, Inconel Forged Socket weld Equal CroInconel , Inconel Forged Screwed-Threaded Equal CroInconel , Inconel Forged Socket weld Unequal CroInconel , Inconel Forged Screwed-Threaded Unequal CroInconel , Inconel Forged Socket weld Half coupling, Inconel Forged Screwed-Threaded Half coupling, Inconel Forged Socket weld Full coupling, Inconel Forged Screwed-Threaded Full coupling, Inconel Forged Socket Weld Pipe Outlet Fittings, Inconel Forged Screwed-Threaded Cap, Inconel Forged Socket Weld Pipe Cap, Inconel Forged Screwed-Threaded Plug, Inconel Forged Socket Weld Union, Inconel Forged Screwed-Threaded Bushing, Inconel Forged Socket Weld Reducer Insert, Inconel Forged Screwed-Threaded Hex Nipples, Inconel Forged Socket Weld Inconel , Inconel Forged Street Elbows, Inconel Forged Socket Weld Branch Outlet, Inconel Forged Welding , Inconel Forged 90 Deg Socket Weld Elbow Outlet, Inconel Forged Union BS 3799, Inconel Forged Socket Weld Swage Nipples Pipe Swage, Inconel Forged Swage Nipple etc. as per International standard like ASME/ASTM/API, we are supplying & exporting Inconel Forged Fittings in seamless & welded both forms to more than 60 countries for over 2 decades, we have our dealers & distributors in Nigeria, Australia, Malaysia, Egypt, South Africa, Tanzania, Kenya, Mozambique, Angola, Gabon Germany, Turkey, France, United Kingdom, Italy, Netherlands, Iran , Iraq , Saudi Arabia, United Arab Emirates , Iisrael, Jordan, Oman, Kuwait, Qatar, Bahrain, Bangladesh, China, Indonesia, South Korea, Pakistan, Philippines, Singapore, Sri Lanka, Thailand, Vietnam, Brazil, Colombia, Argentina & United States of America, Riton Metal Industries is the only company in INDIA which is approved Manufacturer & supplier of Inconel Forged Fittings in 300 top companies worldwide. Few of them are ORPIC, NIORDC, Saudi Aramco, SABIC, PIDMCO, GASCO, KNPC, Indian Oil, BPCL, HPCL, NTPC, BARC & Indian Navy, Riton Metal Industries is ISO 9001:2008, ISO 14001, OHSAS 18001 Certified Company since 2006 & PED approved Manufacturer since 2008, Riton Metal Industries is India's 6th largest Manufacturer, supplier & exporter of Inconel Forged Fittings .
Infrastructure :
Riton Metal Industries is 6th largest Inconel Forged Fittings & Flanges manufacturers in INDIA. we have following latest automated machines to manufacture Inconel Forged Fittings : Induction Elbow Making Machines, Bulge Forming Machine, Pipe Bending Machine, Elbow Cold Forming Machine, Induction Elbow Machine, Hydraulic Pressing Machine, Elbow and Pipe Bending Machine, Beveling Machine, we have largest Four-Column Hydraulic Press in INDIA which is used for pipe bending, pipe fitting press forming, metal sheet stretching and pulling. Now Riton Metal Industries . is INDIA's largest Engineering & Forging Company related to Petro-Chemical and Oil & Gas Industry.

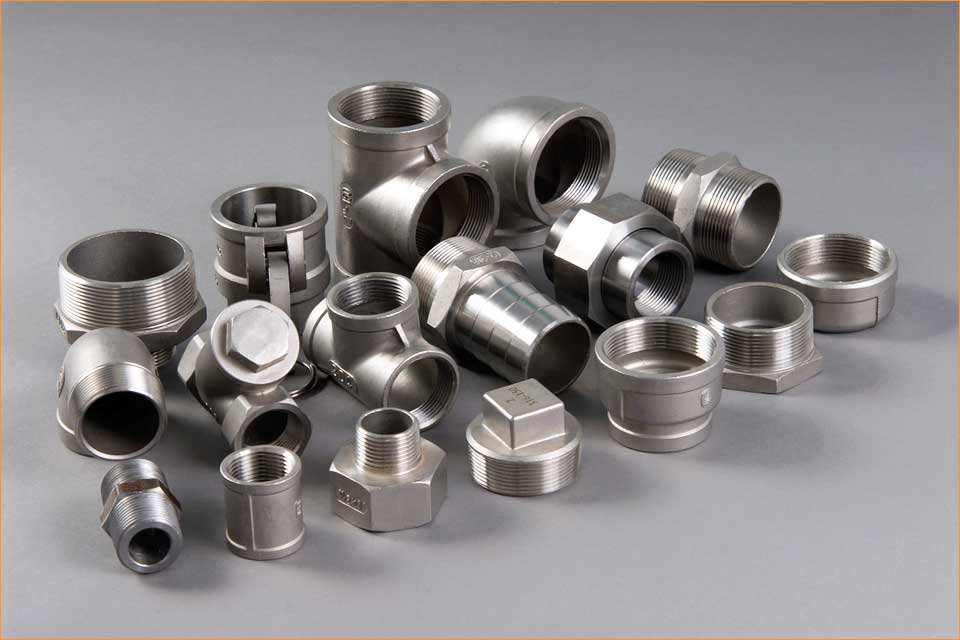

Inconel Forged Fittings
Inconel Forged Fittings Size & Specification :
| Size | ⅛" to 4" |
| Grade | Inconel 600 (UNS No. N06600), Inconel 601 (UNS No. N06601), Inconel 625 (UNS No. N06626), Inconel 800 (UNS No. N08800), Inconel 800H (UNS No. N08810), Inconel 825 (UNS No. N08825). |
| Standard | ASTM / ASME SB 564 / 160 / 472. |
| Dimensions | ANSI/ASME B16.11 & BS3799, etc. |
| Class | 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc. |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | Tee, Union, Full Coupling, Half Coupling,Elbow 45 Deg & 90 Deg, Swage Nipple, Cross, Cap, Plug Bush |
| Nickel Alloys | Tradename | UNS no. | Werkstoff No. | Density (8.8 g/cm3) |
| Alloy 600 | Inconel 600 | N06600 | 2.4816 | 8.42 |
| Alloy 601 | Inconel 601 | N06601 | 2.4851 | 8.2 |
| Alloy 625 | Inconel 625 | N06625 | 2.4856 | 8.44 |
| Alloy 718 | Inconel 718 | N07718 | 2.4668 | 8.19 |
Types of Inconel Forged Fittings :
Available Types of Inconel Forged Fittings
Riton Metal Industries is a leading manufacturer and exporter of high nickel based special alloy forged pipe fittings. Generally seamless forged pipe fittings (Alloy 600 forged Fittings and Alloy 625 forged Fittings) are available in the size range of ½” NB to 8″ NB. For sizes above 8″NB, we offer our customers with seam welded 100% radiography tested Inconel forged fittings. Riton Metal Industries offers a complete range of Inconel forged fittings such as Inconel forged reducer, Inconel forged elbow, Inconel forged tee, Inconel forged cross, Inconel forged stub ends and Inconel forged bends. We are specialise in the manufacturers and supply of Inconel forged bends in both standard and non standard sizes, with bending radius of 1D to 10D.
Alloy 600 forged Fittings or Inconel 600 forged Fittings, is a non-magnetic nickel-chromium alloy and is widely referred as UNS N06600 forged Fittings, while Inconel 601 forged Fittings is a nickel-chromium alloy, with an addition of aluminum. Inconel 601 forged Fittings exhibits excellent resistance to high temperature oxidation. Inconel 625 forged Fittings, a nickel-chromium-molybdenum alloy, is another super alloy which widely used in chemical processing, marine engineering, petrochemical and oil and gas offshore industries. Overall, Inconel forged fittings and flanges exhibit excellent corrosion resistance and mechanical properties in the most demanding environments.
Riton Metal Industries also stocks and supplies a complete range of Inconel forged Fittings to complement our existing production range of forged fittings and flanges. Inconel forged Fittings can be supplied in cut to length sizes and also machined or fabricated to meet your piping requirements. Inconel forged fittings are especially suitable for chemical process industry, industrial heating equipment, marine engineering, offshore oil and gas platforms, pulp and paper manufacturing and nuclear industries.
Types of Inconel Forged Fittings :
Available Types of Inconel Forged Fittings
Inconel Forged Fittings - Material Specfication and Dimension Standards :
| Product Category |
Material Specification as per ASME/ASTM |
Dimension Standards |
|---|
| High Pressure Forged Fittings | ASME SB564/564M Inconel 600, ASTM B564/564M Inconel 600 | ASME B16.11, ANSI B16.11 |
| High Pressure Forged Fittings | ASME SB564/564M Inconel 625, ASTM B564/564M Inconel 625 | ASME B16.11, ANSI B16.11 |
| High Pressure Forged Fittings | ASME SB564/564M Incoloy 800, ASTM B564/564M Incoloy 800 | ASME B16.11, ANSI B16.11 |
| High Pressure Forged Fittings | ASME SB564/564M Incoloy 825, ASTM B564/564M Incoloy 825 | ASME B16.11, ANSI B16.11 |
Inconel Forged Fittings - Size Range :
| Sizes |
3000# |
6000# & 9000# |
|---|
| ELBOWS & TEES | upto 4" | upto 2" |
| Unions & Couplings | upto 4" | upto 2" |
| Plugs and Caps | upto 4" | upto 2" |
Inconel Forged Fittings - Other Product Names(Equivalent) :
| UNS Nos |
Other Names |
|---|
| UNS N06625 | ALLOY 625, W.NR 2.4856, Inconel alloy 625 |
| UNS N06600 | alloy 600, W.Nr. 2.4816, INCONEL alloy 600 |
| UNS N08800, UNS N08810, UNS N08811 | W. Nr. 1.4876, alloy 800, alloy 800h, alloy 800ht |
| UNS N08825 | W.Nr. 2.4858, Alloy 825, inconel 825 |
Inconel Forged Fittings - Forms :
| 90 Degree Elbow | 45 Degree Elbow | Equal Tee | Unequal/Reducing Tee | Equal Cross | Unequal/Reducing Cross |
| Coupling (Half, Full) | Caps | Hex Nipples | Pipe Nipples | Plugs | Hex Head Plugs |
| Round Head Plugs | Square Head Plugs | Unions | |
Inconel Forged Fittings Production Range
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800) |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
High Pressure Forged Inconel Pipe Fittings
Threaded and Socket Weld Pipe Fittings
| Products | Size |
| Inconel Forged 90° Elbows | Inconel Forged Couplings | Sizes 1/8″ – 4″
Pressure Ratings –
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Inconel Forged 45° Elbows | Inconel Forged Reducers |
| Inconel Forged Street Elbows | Inconel Forged Inserts |
| Inconel Forged Tees | Inconel Forged Caps |
| Inconel Forged Crosses | Inconel Forged Unions |
Types of Inconel Forged Fittings
•
| Inconel Forged Equal Cross | • | Inconel Forged 1.5D Elbow |
| • | Inconel Forged Reducing Cross | • | Inconel Forged Outlet Tees and Crosses |
| • | Inconel Forged 90° Long Radius Elbow | • | Inconel Forged Concentric/Eccentric Reducer |
| • | Inconel Forged 90° Short Radius Elbow | • | Inconel Forged Reducer |
| • | Inconel Forged End Cap/Pipe Cap | • | Inconel Forged 1D Elbow/3D Elbow/5D Elbow |
| • | Inconel Forged Lap Joint Stub Ends | • | Inconel Forged Lateral Tee |
| • | Inconel Forged Reducing Tee | • | Inconel Forged Short Stubend/Long Stubend |
| • | Inconel Forged Collar | • | Inconel Forged Straight Tees |
| • | Inconel Forged Straight Crosses | • | Inconel Forged Swedge Nipple/Pipe Nipple/Reducing Nipple |
| • | Inconel Forged Piggable Bend | • | Inconel Forged Barrel Nipple |
| • | Inconel Forged 45° Long Radius Elbow | • | Inconel Forged 180° Long Radius Elbow |
| • | Inconel Forged 45° Short Radius Elbow | • | Inconel Forged 180° Short Radius Elbow |
Available Inconel Forged Fittings Form
| | |
- Inconel 718 forged pipe fittings
FOB Price: US $10-300 / Kilogram
| Inconel forged fittings
FOB Price: US $1-30 / Kilogram | Inconel 718 Forged Fittings
FOB Price: US $10-1000 / Kilogram |
| | |
UNS N06625/Inconel 625/alloy 625/NS336/2.4856 Forged fittings
FOB Price:US $8.0-30.0 / Piece | incoloy 800HT pipe fittings
FOB Price: US $1-30 / Kilogram | alloy inconel 625 forged fittings
FOB Price: US $30-80 / Kilogram |
| | |
inconel 625 forged fittings
FOB Price: US $9-18 / Kilogram | alloy 625/inconel 625 fittings with high quality
FOB Price: US $1-1000 / Piece | Inconel X 750 Steel Forged Fittings
FOB Price: US $100.0-100.0 / Pieces |
| | |
Inconel 625 UNS N06625 forged fittings elbow
FOB Price: US $500-1500 / Piece | special nickle alloy inconel 625 forged fittings
FOB Price: US $3-30 / Piece | Inconel 800 Forged Fittings
FOB Price: US $10-3800 / Piece |
| | |
UNS N07750/Inconel X-750 Forged fittings
FOB Price: US $10-1000 / Kilogram | Inconel 625 Forged Fittings
FOB Price: US $3-20 / Piece | Inconel 625 Forged Steel Fittings
FOB Price: US $100.0-100.0 / Pieces |
ANSI B16.11 Inconel 600 Forged Pipe Fittings, DIN 2.4816 Inconel 600 Forged Elbow, Inconel 600 Forged Tee, Inconel 600 Coupling Manufacturers in india.
| Standard | Inconel 600 | Inconel 625 | Inconel 718 | Incoloy 825 |
| UNS | N06600 | N06625 | N07718 | N08825 |
| WERKSTOFF NR. | 2.4816 | 2.4856 | 2.4668 | 2.4858 |
| AFNOR | NC15FE11M | NC22DNB4M | | NFE30C20DUM |
| JIS | NCF 600 | NCF 625 | | NCF 825 |
| GOST | МНЖМц 28-2,5-1,5 | ХН75МБТЮ | | ЭП703 |
| BS | NA 13 | NA 21 | | NA 16 |
| EN | NiCr15Fe | NiCr22Mo9Nb | | NiCr21Mo |
| OR | ЭИ868 | ЭИ602 | | XH38BT |
ANSI B16.11 Incoloy 800 Forged Pipe Fittings, DIN 2.4876 Incoloy 800 Forged Elbow, Incoloy 800 Forged Tee, Incoloy 800 Coupling Manufacturers in india.
| Standard | Incoloy 800 | Incoloy 800H | Incoloy 800HT |
| UNS | N08800 | N08810 | N08811 |
| WERKSTOFF NR. | 1.4876 | 1.4958 / 1.4876 | 1.4859 / 1.4876 |
| AFNOR | Z8NC32-21 | Z8NC33-21 | - |
| JIS | NCF 800 | NCF 800H | NCF 800HT |
| GOST | ЭИ670 | ЭИ670 | ЭИ670 |
| BS | NA 15 | NA 15(H) | NA 15(HT) |
| EN | X10NiCrAlTi32-20 | X5NiCrAlTi31-20 | X8NiCrAlTi32-21 |
| OR | XH32T | XH32T | XH32T |
Inconel Forged Fittings Price
Our Specialization in Below Inconel Forged Fittings
- Inconel forged fittings suppliers
- Inconel forged fittings welded
- Inconel forged fittings manufacturers
- Inconel welded forged fittings
- Inconel forged fittings manufacturer
- Inconel forged fittings pressure rating
- Industrial Inconel forged fittings
- Inconel UNS N10665 forged fittings
- Inconel Forged Pipe Fittings
- Customized Forged Inconel Pipe Fittings
- high quality Inconel Forged Fittings
- Manufacturers of Inconel forged Fittings
- Inconel forged Fittings & Flanges
- Inconel 600, 601, 625, 800, 800H, 825 Forged Fittings Manufacturers
- Inconel Forged Threaded Fittings
- Special Inconel forged Fittings
- Inconel Threaded Fittings suppliers
- Inconel Forged Socket Weld Pipe Fittings
| - Industrial Fittings Inconel forged fittings
- ASME B16.11 Inconel 800 Forged Fittings
- Exporter of Inconel Forged Fittings
- wide range of High quality Inconel forged fittings
- High quality Inconel forged fittings
- Inconel 625 Forged Fittings
- Manufacturers Special Inconel forged Fittings
- Manufacturer & supplier of high strength Inconel Forged Fittings
- Inconel Socket Weld Threaded Forged Fittings
- Exporter of Inconel Forged Fittings
- size variation of Inconel Steel Forged Fittings
- ASTM B564 Inconel Forged Fittings
- UNS N06600 / Inconel 600 Forged Fittings
- Manufacturer of Inconel Forged Pipe Fittings
- Inconel Forged Fittings UNS N06600
| - Custom Inconel Forged Fittings
- Inconel Screwed forged fittings
- Competitive Price Factory Customized Inconel forged Fittings,Elbow 90 Degree
- Inconel High Pressure Forged Fittings
- Top quality Inconel forged fittings
- Inconel 625 Forged Fittings Price
- Inconel UNS N07718 Threaded Forged Fittings
- Manufacturers of Incoloy 800,825 Forged Fittings
- manufacturers & exporters Incoloy 800 forged fittings
- Inconel Alloy Threaded and Socketweld Forged Pipe Fittings
- Leading Industrial Inconel Forged Fittings
- Inconel 600 Threaded Forged Fittings
- Inconel DIN 2.4816, 2.4851, 2.4856, 2.4668 Forged Threaded Fittings
|
Inconel 600
Inconel nickel-chromium-iron alloy 600 is a engineering material which require resistance to corrosion and heat. The alloy also has superb mechanical properties and presents the desirable combination of high strength and good workability. The high amount of nickel content gives the alloy resistance to corrosion by many organic and inorganic compounds and also makes it virtually immune to chloride-ion stress-corrosion cracking. Chromium confers resistance to sulfur compounds and also provides resistance to oxidizing conditions at high temperatures or in corrosive solutions. The alloy is not precipitation hardenable, it is strengthened and hardened only by cold work.
The Inconel alloy 600 is versatility has led to its use in a variety of manufaturing applications involving temperatures from cryogenic to above 2000°F. The alloy is used extensively in the chemical industry like pharmacutical for its strength and corrosion resistance. Applications include bubble towers, stills, heaters, and condensers for processing of bubble towers, fatting acids, evaporator tubes, tube sheets, and flaking trays for the manufacture of sodium sulfid, and equipment for handling abietic acid in the manufacture of paper pulp.
The alloy's strength and oxidation resistance at high temperatures make it useful for many applications in the heat treating industry. It is used for retorts, muffles, roller hearths, and other furnace components and for heat treating baskets and trays. In the aeronautical field, alloy 600 material is used for a variety of engine and airframe components, which must withstand high temperatures. Examples are lock wire, exhaust liners, and turbine seals.
The alloy is also a standard material of constructing nuclear reactors. It has excellent resistance to corrosion by high purity water, and no indication of chloride-ion stress-corrosion cracking in reactor water systems has been detected. For nuclear applications, the alloy is produced to exacting specifications and is designated Inconel alloy 600T.
Inconel 625
Inconel nickel chromium alloy 625 is used for its high strength, excellent fabricability (including joining), and outstanding corrosion resistance. Service temperatures range from cryogenic to 1800°F.
Strength of Inconel alloy 625 is derived from the stiffening effect with molybdenum and columbium on its nickel-chromium matrix, thus hardening treatments are not required. This combination of chemical elements also is responsible for superior resistance to a wide range of corrosive environments of unusual severity as well as to high-temperature effects such as oxidation and carburization.
The inconel 625 versatile and outstanding corrosion resistance under a wide range of temperatures and pressures is a primary reason for its wide acceptance in the chemical processing field. Because of its ease of fabrication, it is made into a variety of element and component for plant equipment. Its high strength enables it be used, for example, in thinner-walled vessels or tubing than possible with other materials, thus improving heat transfer and saving weight. Some applications requiring the combination of corrosion resistance and strength offered by Inconel alloy 625 are tubing, reaction vessels, distillation columns, heat exchangers, transfer piping and valves.
Inconel 800
Incoloy alloy 800 is a widely used material of construction for equipment that must have high strength and resist carburization,oxidation and other harmful effects of high-temperature exposure. (For high temperature applications requiring optimum rupture and creep properties, Incoloy alloys 800H and 800HT are used). The chromium in the alloy imparts resistance to oxidation and corrosion. The high percentage of nickel maintains an austenitic structure so that the alloy is ductile. the nickel content also contributes general corrosion, resistance to scaling and stress-corrosion cracking.
Incoloy alloy 800 is used in a variety of applications involving exposure to high temperatures and corrosive environments. It is used for heat-treating equipment such as baskets, trays and fixtures. In chemical and petrochemical processing the alloy is used for heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required. In nuclear power plants, it is used for steam-generator tubing. The alloy is often used in home appliances for sheathing of electric heating elements. In the production of paper pulp, digester liquid heaters are often made of alloy 800. In petroleum processing , the alloy is used for heat exchangers that air-cool the process stream.
Inconel 825
Incoloy alloy 825 is a nickel-iron-chromium alloy with additions of copper, molybdenum and titanium. The alloy's chemical composition is designed to provide exceptional resistance to many corrosive environments. The nickel content is sufficient for resistance to chloride-ion stress corrosion cracking. The nickel, in conjunction with the molybdenum and copper, also gives outstanding resistance to reducing environments such as those containing sulfuric and phosphoric acids. the molybdenum also aids resistance to pitting and crevice corrosion. The alloy's chromium content confers resistance to a variety of oxidizing substances such as nitrates, nitric acid and oxidizing salts. The titanium addition serves, with an appropriate heat treatment, to stabilize the alloy against sensitization to intergranular corrosion. The resistance of Incoloy 825 to general and localized corrosion under diverse conditions gives the alloy broad usefulness. Applications include chemical processing, pollution control, oil and gas recovery, acid production, pickling operations, nuclear fuel reprocessing and handling of radioactive wastes.
Inconel Forged Fittings - ASTM Specifications :
| ALLOY |
Forging |
Fitting / Fittings |
|---|
| INCONEL 625, INCONEL 600 | ASTM B564 | ASTM B366 |
Inconel Forged Fittings Dimensions :
| Form of Forged Fittings | Types of Forged Fittings fittings | Size Range | Dimension Standards |
| Tees and Elbows | Socket Weld & Threaded | 1/4" NB to 4" NB in Class 2000 , 3000, 6000, 9000 | ASME B16.11, ANSI B16.11 |
| Unions and Couplings |
| Caps and Plugs |
| Cross |
Type Of Inconel Forged Fittings Available At Best Price
Inconel Forged Fittings Useful Info
| Fitting Class |
Fitting Connection |
|---|
2000 | Threaded |
3000 | Threaded |
6000 | Threaded |
3000 | Socket-Weld |
6000 | Socket-Weld |
9000 | Socket-Weld |
Inconel Forged Fittings Manufacturing Standards
- ASME B16.11 – Socket Welding and Threaded Forged Fittings
- MSS SP-95 – Swage(d) Nipples and Bull Plugs
- BS3799 – Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
Inconel Forged Fittings - Chemical Composition :
| C | Si | Mn | P | S | Ni+Co | Cr | Cu | Fe |
| 0.15 | 0.5 | 1.0 | — | 0.015 | 72.0 | 14.0~ 17.0 | 0.5 | 6.0~ 10.0 |
Inconel Forged Fittings - Mechanical Properties :
| 0.2% proof stress [MPa] min | Tensile strength [MPa] min | Elongation [%] min | Hardness [HB] max |
| 240 | 550 | 30 | 88 |
Inconel Forged Fittings - Physical Properties :
| Density | 8.51 [g/cm3] |
| Specific heat | 444 [J/kg . K] |
| Electrical resistivity | 103 [μΩ . cm] |
| Thermal conductivity | 15.0 [W/m . K] |
| Average coefficient of thermal expansion | |
| 25~ 93°C | 13.3 [10-6/°C] |
| 25~316°C | 14.2 |
| 25~538°C | 15.1 |
| 25~760°C | 16.0 |
| 25~982°C | 16.7 |
| Young’s modulus | 21.4 × 104 [MPa] |
| Curie point | -124 [°C] |
| Magnetism | None |
| Melting range | 1370~1410 [°C] |
Inconel Forged Fittings Application
- Inconel Forged Fittings Used in Pulp and paper manufacturing plants
- Inconel Forged Fittings Used in Chemical processing equipment
- Inconel Forged Fittings Used in Petrochemical processing equipment
- Inconel Forged Fittings Used in Textile machinery and equipment
- Inconel Forged Fittings Used in Vessels and tanks
- Inconel Forged Fittings Used in desulfurization
- Inconel Forged Fittings Used in Chemical procedures
- Inconel Forged Fittings Used in Medical field
- Inconel Forged Fittings Used in Pharmaceutical plants
- Inconel Forged Fittings Used in Food processing plants
- Inconel Forged Fittings Used in Aviation engine components
Inconel Forged Fittings Value Added Services
- Inconel Forged Fittings Cutting
- Inconel Forged Fittings Forming
- Inconel Forged Fittings Bevelling
- Inconel Forged Fittings Machining
- Inconel Forged Fittings Heat Treatment
- Inconel Forged Fittings Pickling
- Inconel Forged Fittings Final Inspection
- Inconel Forged Fittings Marking
Inconel Forged Fittings Application Industry
- Inconel Forged Fittings Used In Fertilizers Industry
- Inconel Forged Fittings Used In Aerospace Industry
- Inconel Forged Fittings Used In Nuclear Power Plant Industry
- Inconel Forged Fittings Used In Chemical Industry
- Inconel Forged Fittings Used In Oil & Gas Industry
- Inconel Forged Fittings Used In Refineries Industry
- Inconel Forged Fittings Used In Petrochemical Industry
- Inconel Forged Fittings Used In Paper Industry
Key Properties of Inconel Forged Fittings
- High corrosion resistance in tough environments
- Lower intergranular precipitation
- High resistance to pitting and crevice corrosion
Forged Fitting Type
| | |
forged steel pipe fittings introduction Forged Steel Pipe Fitting What is a forged steel pipe fittings ?Forged steel pipe fittings are hot formed sections with different types for high pressure pipe fittings, they ar ...
|
| | |
Pipe Bushing Hex Head and Flsuhing-Forged Threaded Pipe Fittings Pipe Bushing Hex Head and FlsuhingBushing a cylindrical or conical part of a machine, mechanism, or instrument, which has an axial opening into which another part fits. Dependi ...
|
| | |
Pipe Nipples, Swaged Nipples-Forged Pipe Fittings Alloy Steel Socket Weld and Threaded Swaged Nipplepipe nipple is a length of straight pipe with male threads on both ends. It is one of the most popular category of pipe fittin ...
|
| | |
Pipe Plugs-Hexagonal/Round/Square Head Plug, BSP Pipe Plugs This plug is used to close off the end of a pipe. It is similar to a cap but it fits inside the fitting it is mated to. In a threaded iron pipe plumbing system, plugs have male ...
|
| | |
Pipe Union:Hex Head Socket Weld Union and Thread Union carbon steel and stainless steel thread unionA pipe union is a secure and semi-permanent connection between two pipes. Most pipe unions consist of two pipes connected together ...
|
| | |
Socket Weld End Cap-Forged Steel Pipe Fittings ASTM A182 F316L Stainless Steel Pipe End CapSocket Weld fittings generalA Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, f ...
|
| | |
Socket Weld Steel Cross-Forged Steel Pipe Fitting Stainless Steel Socket Weld CrossSocket Weld fittings generalA Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or f ...
|
| | |
Socket Weld Steel Elbow 90/180 Degrees-Forged Steel Pipe Fittings Socket Weld fittings generalA Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fi ...
|
| | |
Socket Weld Tee-Forged Steel Pipe Fittings Socket Weld fittings generalA Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fi ...
|
| | |
Street Elbow-Forged Steel Pipe Fittings Stainless Steel 304 Street ElbowA street elbow (sometimes called a street ell or service ell) is a type of plumbing or piping fitting intended to join a piece of pipe and anoth ...
|
| | |
Threaded Elbow 45/90 Degree-Forged Steel Pipe Fittings Definition and Details of Threaded Fittings ASME B16.11Threaded Fittings generalThreaded joints probably represent the oldest method of joining piping systems. Like Socket Weld ...
|
| | |
Thread Steel Tee-Forged Steel Fittings Definition and Details of Threaded Fittings ASME B16.11Threaded Fittings generalThreaded joints probably represent the oldest method of joining piping systems. Like Socket Weld ...
|
| | |
Threaded Cross-Forged Steel Pipe Fittings Threaded CorssThreaded Corss-Threaded Fittings generalThreaded joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittin ...
|
| | |
Threaded Full/Half Couplings-Forged Carbon Steel Fittings Coupling fittings are used for fluid conduits in which each end portion of two tubes to be connected is provided with a swaged-on adapter carrying the necessary means to connec ...
|
Forged Fitting Standard
| | |
ASME B16.11 Forged Pipe Fittings, Socket-Welding and Threaded ASME B16.11 – Forged Fittings, Socket-Welding and ThreadedASME B16.11 – Forged Fittings, Socket-Welding and Threaded1 SCOPE1.1 GeneralThis Standard covers ratings, dimens ...
|
| | |
BS 1740 Wrought Forged Steel Pipe Fittings (Screwed BS 21 R-s ... BS 1740 – wrought steel pipe fittings (screwed BS 21 R-series thread). Metric units This British Standard is the official English language version of EN 10241:2000. It su ...
|
| | |
BS 3799 screwed and socket-welding pipe fittings for the petr ... 1.1 Scope This British Standard specifies requirements for forged carbon and alloy steel screwed and socket-welding fittings for use in the petroleum and petrochemical industry ...
|
| | |
JIS B2316 Steel Socket-welding pipe fittings JIS B2316 Socket Weld 45 Deg ElbowJIS B2316 Socket Weld 90 Deg ElbowJIS B2316 Socket Weld Y TeeJIS B2316 Socket Weld TeeJIS B2316 Socket Weld CapJIS B2316 Socket Weld CrossJIS ...
|
| | |
MSS SP-83 Steel Pipe Unions Socket Welding and Threaded MSS SP-83 Socket Welding and Threaded Steel Pipe Unions1 .SCOPE1.1 This Standard Practice establishes envelope and other essential dimensionals, finish, tolerances, testing, ma ...
|
| | |
MSS SP-95 Swaged Nipples and Bull Plugs MSS SP-95 Threaded Swaged Nipples1.1 This standard covers dimensions, finish, tolerances, marking and material for carbon steel and alloy steel Swaged Nipples (male end reducin ...
|
| | |
MSS SP-97 Forged Branch Outlet Fittings-Socket Welding,Thread ... 1. SCOPE1.1 This Standard Practice covers essential dimensions, finish, tolerances, testing, marking, material, and minimum strength requirements for 90 and 45 degree integrall ...
|
Forged Fitting Material
| | |
ASTM A234 WP11 Alloy Steel Pipes Fittings for Moderate and Hi ... ASTM A234 WP11 Alloy Steel ElbowASTM A234 refers to pipe fittings of wrought carbon steel and alloy steel for use in moderate and elevated temperatures. Typical applications in ...
|
| | |
ASTM A234 WP22 Alloy Steel Pipes Fittings for Moderate and Hi ... ASTM A234 WP22 90 Deg Large Radius Elbow ASME B16.9ASTM A234 refers to pipe fittings of wrought carbon steel and alloy steel for use in moderate and elevated temperatures. Typi ...
|
| | |
ASTM A234 WP5 Alloy Steel Pipes Fittings for Moderate and Hig ... ASTM A234 WP5 Alloy Steel 45 Deg ElbowASTM A234 refers to pipe fittings of wrought carbon steel and alloy steel for use in moderate and elevated temperatures. Typical applicati ...
|
| | |
ASTM A234 WP9 Alloy Steel Pipes Fittings for Moderate and Hig ... ASTM A234 WP9 Alloy Steel 45 Deg ElbowASTM A234 refers to pipe fittings of wrought carbon steel and alloy steel for use in moderate and elevated temperatures. Typical applicati ...
|
| | |
ASTM A234 WPL6 Alloy Steel Pipes Fittings for Moderate and Hi ... ASTM A234 WPL6 Alloy Steel 45 Deg ElbowASTM A234 refers to pipe fittings of wrought carbon steel and alloy steel for use in moderate and elevated temperatures. Typical applicat ...
|
| | |
DIN ST35.8 Boiler tube Mechanical Property &Chemical Components Din 17175 ST 35.8 seamless steel tubes for boiler1. DIN 17175 ST 35.8 Seamless Steel Tubes for Boiler Industry Heat-resisting seamless steel tube, used for the pipelines of boi ...
|
| | |
EN 10025-2 S235JR : European standard for hot-rolled structur ... S235JR steel plate is one mainly of Carbon and low alloy steel, S235JR steel plate is a type of steel sheet under EN standard which is used to build ship, bridge, belongs to hi ...
|
| | |
EN P235GH European specified steel for use in pressure vessel ... P235GH is a European specified steel for use in pressure vessels, boilers and heat exchangers. The composition of this steel makes it ideal for applications where elevated work ...
|
| | |
EN P265GH weldable non-alloy quality pressure vessel steel Stocks of boiler plate steel ready to be supplied as plate, cut plate, or profiles (cut shapes) and certified to EN 10028:2 P265GH are available from Brown McFarlane Limited. E ...
|
| | |
EN P355GH Steel for heat-resistant pressure vessels P355GH steel plate, EN10028 P355GH steel plates is a kind of material for boiler and pressure vessel steel. EN10028 P355GH steel plates is characterised by a minimum yield stre ...
|
| | |
GB 20 carbon seamless steel for pipe fittings GB 20 Carbon Steel ElbowThis group of Chinese (GB) standard specifications covers carbon and alloy steel plates and forgings used in boilers and pressure vessels, high-strength ...
|
| | |
GB Q345 low-alloy high-tensile structural steel GB Q345/ASTM A572 Gr50 Alloy Structural Steel Square BarPlace of Origin:Hebei,China Brand Name:Haihao GroupShape:square bar Material:Alloy Structural SteelSteel Grade: ATSM A57 ...
|
| | |
JIS G3101 General Structure Hot Rolled SS400 Steel JIS G3101 SS400 JIS G3101 SS400 steel plate/sheet, under JISG3101 standard, we can regard SS400 steel plate/sheet for general purpose structural steel.JIS G3101 SS400 is a tech ...
|
| | |
ST52-3 NBK DIN 2393 Welded Precision Steel Tubes DIN 2393 ST52-3 steels is a low alloy, high strength structural steel which can be readily welded to other weldable steel. With its low carbon equivalent, ST52-3 steel possesse ...
|
Forged Fitting Dimension
| | |
ASME B16.11 Bushing-Hex Head Bushing and Flush Bushing Dimension ASME B16.11 Hex Head Bushing ASME B16.11 Flush BushingUHex Head BushingFlush BushingDNNPSA(Length)F(Width Flat)G(Hex Height)WeightVolumeWeightVolume81/4”111630.010.005*10-30.00 ...
|
| | |
ASME B16.11 Hex Head Plug ASME B16.11 Hex Head Plug DNNPSA(Length)E(Diameter of head)D(Length)WeightVolume61/8”1010350.020.004*10-381/4”1114410.050.009*10-3103/8”1318410.080.014*10-3151/2”1421440.1 ...
|
| | |
ASME B16.11 Socket Weld 45 Deg Elbow pressureDNNPSABDC(Ave)C(Min)GJClass 300061/8″810.86.93.183.182.419.5Class 300081/4″814.29.33.783.33.029.5Class 3000103/8″817.612.64.013.53.29.5Class 3000151/2 ...
|
| | |
ASME B16.11 Socket Weld Cap Dimensions ASME B16.11 Socket Weld CapA Socket Weld is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fit ...
|
| | |
ASME B16.11 Socket Weld Tee Cross Dimensions Socket Weld Tee Dimensions Socket Weld 90°Elbow、Tee、Cross DimensionsClassDNNPSABDC(Ave)C(Min)GJ300061/8″1110.86.93.183.182.419.5 81/4″1114.29.33.783.33.029.5 ...
|
| | |
ASME B16.11 Square Head Plug DNNPSA(Length)B(Height of Square)WeightVolume61/8”1060.010.002*10-381/4”1160.020.004*10-3103/8”1380.030.007*10-3151/2”14100.060.012*10-3203/4”16110.100.020*10-3251”19130.180.03 ...
|
| | |
ASME B16.11 Threaded/Screwed 45 Deg Elbow pressureDNNPSC(Center to End)D(O.D)G(Min Thickness)B(Length of Thread)L2(Length of Thread)Class 200061/8″17223.186.46.7Class 200081/4″17223.188.110.2Class 2000103/8 ...
|
| | |
ASME B16.11 Threaded Elbow/Screwed Elbow pressureDNNPSADGBJClass 200061/8″21223.186.46.7Class 200081/4″21223.188.110.2Class 2000103/8″25253.189.110.4Class 2000151/2″28333.1810.913.6Class 200020 ...
|
| | |
ASME B16.11 Threaded/Screwed Cap pressureDNNPSP(Center to End)D(Outside Diameter)G(Wall Thickness)B(Length of Thread)L2(Length of Thread)Class 300061/8″19164.86.46.7Class 300081/4″25194.88.110.2Cla ...
|
| | |
ASME B16.11 Threaded/Screwed Coupling pressureDNNPSW(Center to End)D(Outside Diameter)G(Wall Thickness)B(Length of Thread)L2(Length of Thread)WeightVolumeClass 300061/8”32164.86.46.70.060.009*10-3Class 300081/4”351 ...
|
| | |
ASME B16.11 Threaded/Screwed Street Elbow pressureDNNPSHAJG1G2BL2LClass 300061/8”1919253.182.746.46.710Class 300081/4”2522323.33.228.110.211Class 3000103/8”3225383.53.59.110.413Class 3000151/2”3828414.094.1610.913.614C ...
|
| | |
MSS SP-83 Threaded/Screwed Union A pipe union is a secure and semi-permanent connection between two pipes. Most pipe unions consist of two pipes connected together via a third piece. All three are threaded to ...
|
| | |
MSS SP-95 Swaged Pipe Nipples Dimensions MSS SP-95 swage nipples dimensionsMSS SP-95 Swaged Nipples and Bull Plugs covers dimensions, finish, tolerances, marking and material for carbon steel and alloy steel Swaged Ni ...
|
| | |
MSS SP-97 Sockolet-forged pipe fittings pressureNPSABCDEClass 30001/2″25.435.7123.0115.814.28Class 30003/4″26.9843.6529.3620.9314.28Class 30001″33.3350.836.5126.6419.84Class 30001 1/4″33.3365 ...
|
| | |
MSS SP-97 Thredolet-Threaded forged pipe fittings pressureNPSABCClass 30001/2″25.435.7123.81Class 30003/4″26.9843.6529.36Class 30001″33.3350.836.51Class 30001 1/4″33.3365.0844.45Class 30001 1/2″34 ...
|
|
Inconel Forged Fittings Project Reference List
| PROJECT NAME / CUSTOMER |
Riton Metal Industries |
GRADES |
LOCATION |
YEAR |
| GAS AND CONDENSATE EXPORT SYSTEM | Inconel Forged Fittings AND BRANCH OUTLETS BW – SW | A182 F316L – A182F44
A182 F44 , A312S31254, A182 F316L,
A105.N, A105 HDG, A350 LF2, A106
Gr.B, A106 Gr.B HDG , A333 Gr.6, A234 WPB | KUWAIT | 2015 |
| GAS DEVELOPMENT PROJECT | Inconel Forged Fittings, BRANCH OUTLETS | INCOLOY 825 | INDONESIA | 2015 |
| INDORAMA | Inconel Forged Fittings AND BRANCH OUTLETS BW – SW – THRD | A105 – A350 LF2 – A106B- A333 GR6 – A234 WPB – A420 WPL6 – A182 F304L | THE NETHERLANDS | 2015 |
| QUALITY STAMP TRADING -SAUDI ARAMCO | Inconel Forged Fittings , BRANCH OUTLETS SW | A105, A105 GALV, A350 LF2, A182F304L,
A182F316L, A403 WP316L, A182F321,
A182F44, A182F5, CU90/10 UNS C70610 | SAUDI ARABIA | 2014-2015 |
| REFINERY OFF GAS PROJECT | Inconel Forged Fittings, BRANCH OUTLETS BW-THRD, NIP OUTLETS | A105, A105 HDG A350 LF2, A182 F304/
304L, A182F316/316L, A182F11,
A105N, A106B, A234WPB, A333 | BELGIUM | 2014-2015 |
| MA’ADEN WA’AD AL SHAMAL PHOSPHATE | Inconel Forged Fittings AND BRANCH OUTLETS SW-BW | A350LF2, F304L, F316L, F904L,
A182F60, ALLOY20
A105N, A106B, A234WPB, | SAUDI ARABIA | 2014-2015 |
| OIL AND GAS INC | Inconel Forged Fittings AND BRANCH OUTLETS BW | UNS NO 6625 | BRAZIL | 2014 |
| SHIDDIRGANG PROJECT | Inconel Forged Fittings, BRANCH OUTLETS BW-SW-THRD | | BANGLADESH | 2014 |
| SAUDI ARABIAN MINING COMPANY | Inconel Forged Fittings AND BRANCH OUTLETS SW – BW | A105, A105 GALV, A350LF2A182F304L,
A182F316L | SAUDI ARABIA | 2014 |
| GAS TURBINE POWER PLANT PROJECT | Inconel Forged Fittings AND BRANCH OUTLETS SW | A105, A182F316L | IRAQ | 2014 |
| GRUPO CUNADO | FORGED STEEL FITTINGS | A105,A182F304L, A182F316L,F321, | TURKEY | 2013-2014 |
| ALSTOM | FORGED STEEL FITTINGS AND BRANCH OUTLETS | A105, A182F304L, A182F316L | MOROCCO, SOUTH AFRICA | 2010 |
| NORTH WEST REDWATER | Inconel Forged Fittings SW & NPT | A350LF2,A420WPL6,
A182F304L-F316L,WP304L,HAST,C276 | CANADA | 2014-2015 |
| CANADA NWR PROJECT | Inconel Forged Fittings , BRANCH OUTLETS SW & NPT | F304L/316L/317L/347H/321H
F11/F22/ UNS08825 | CANADA | 2014-2015 |
| DENIZ 2 PROJECT | Inconel Forged Fittings SW & NPT | A 105, A105 GALVA, A350LF2, A333 Gr6,
A234WPB-A420WPL6, F304L, WP304L | AZERBAIJAN | 2014 |
| ADMA OPCO ABU DHABI | Inconel Forged Fittings, BRANCH OUTLETS BW-THRD, LATERAL, OUTLETS | A694 F52, A182F321, A182F316, A105.N,
A312TP316L, A312 TP321, A182 F53
SUPER DUPLEX | UAE | 2014 |
| SAUDI ARAMCO HOLLAND | Inconel Forged Fittings | CuNi 9010 | SAUDI ARABIA | 2014 |
| MISSAN OIL Comp.PETROCHINA IRAQ | API COUPLINGS | L80 | IRAQ | 2014 |
| SAUDI ARAMCO | Inconel Forged Fittings, BRANCH OUTLETS BW-SW-THRD | MONEL 400, A182 F5, A182F316L,
A182F304L, A105 | SAUDI ARABIA | 2014 |
We have supplied Inconel Forged Fittings to below Countries
To buy Inconel Forged Fittings At best price & urgent delivery please mail to info@ritonmetalind.com , As we have Our Dealer, Distributors & Direct Sales Representatives in below Countries who will help you to buy Alloy 600 Forged Fittings & will resolve your queries On Alloy 625 Forged Fittings.
Inconel Forged Fittings, best quality Inconel Forged Fittings, India’s largest Inconel Forged Fittings manufacturer, wide variety of Inconel Forged Fittings, Inconel Forged Fittings India, Inconel Forged Fittings distributor Mumbai, Inconel Forged Fittings traders, prime quality Inconel Forged Fittings, Source for Inconel Forged Fittings, specialize in Inconel Forged Fittings, Inconel Forged Fittings with Test Certificate, Inconel Forged Fittings at dealer price.
Forged Fittings
