ANSI B16.5 / B16.47 / B16.48 / B16.36 Flanges Manufacturers in India

ANSI B16.5/B16.47/B16.48/B16.36 Flanges Flanges manufacturer, ANSI B16.5/B16.47/B16.48/B16.36 Slip On Plate Flange, ANSI B16.5/B16.47/B16.48/B16.36 Welding Neck Flange, ANSI B16.5/B16.47/B16.48/B16.36 Slip On Hub Flange, ANSI B16.5/B16.47/B16.48/B16.36 Welding Neck Flange, ANSI B16.5/B16.47/B16.48/B16.36 Blank Flange Manufacturers in India. ANSI/ASME B16.5, B16.47, B16.47, B16.36, B16.48 Flanges

ANSI B16.5/B16.47/B16.48/B16.36 Flanges manufacturer, ANSI B16.5/B16.47/B16.48/B16.36 Flanges suppliers, Seamless/Seam Welded ANSI B16.5/B16.47/B16.48/B16.36 Flanges, Fabricated ANSI B16.5/B16.47/B16.48/B16.36 Flanges, ANSI B16.5/B16.47/B16.48/B16.36 Flanges Suppliers in Indonesia, UAE, Saudi Arabia, Oman, Qatar, Australia.

Riton Metal Industries is specialized in manufacturing and supplying of ANSI B16.5/B16.47/B16.48/B16.36 flanges , Pipe Fitting, Forged Fittings, Butt weld fittings, Flanges since 1991, we manufacture wide range of ANSI B16.5/B16.47/B16.48/B16.36 Flanges such as ANSI B16.5/B16.47/B16.48/B16.36 Flanges manufacturer, ANSI B16.5/B16.47/B16.48/B16.36 Slip On Plate Flange, ANSI B16.5/B16.47/B16.48/B16.36 Welding Neck Flange, ANSI B16.5/B16.47/B16.48/B16.36 Slip On Hub Flange, ANSI B16.5/B16.47/B16.48/B16.36 Welding Neck Flange, ANSI B16.5/B16.47/B16.48/B16.36 Blank Flange, ANSI B16.5/B16.47/B16.48/B16.36 Lap Joint Flange, ANSI B16.5/B16.47/B16.48/B16.36 Socket Weld Flange / SW Flange etc. as per International standard like ASTM, we are supplying & exporting Flanges in seamless & welded both forms to more than 60 countries for over 2 decades, we have our dealers & distributors in Nigeria, Australia, Malaysia, Egypt, South Africa, Tanzania, Kenya, Mozambique, Angola, Gabon Germany, Turkey, France, United Kingdom, Italy, Netherlands, Iran , Iraq , Saudi Arabia, United Arab Emirates , Iisrael, Jordan, Oman, Kuwait, Qatar, Bahrain, Bangladesh, China, Indonesia, South Korea, Pakistan, Philippines, Singapore, Sri Lanka, Thailand, Vietnam, Brazil, Colombia, Argentina & United States of America, Riton Metal Industries is the only company in INDIA which is approved Manufacturer & supplier of ANSI B16.5/B16.47/B16.48/B16.36 Flanges in 300 top companies worldwide. Few of them are ORPIC, NIORDC, Saudi Aramco, SABIC, PIDMCO, GASCO, KNPC, Indian Oil, BPCL, HPCL, NTPC, BARC & Indian Navy, Riton Metal Industries is ISO 9001:2008, ISO 14001, OHSAS 18001 Certified Company since 2006 & PED approved Manufacturer since 2008, Riton Metal Industries is India's 6th largest Manufacturer, supplier & exporter of ANSI B16.5/B16.47/B16.48/B16.36 Flanges .

Riton Metal Industries is manufacturing & exporting pipe flange from 1/2” thru 200”, 150 lbs to 3000 lbs including ANSI B16.5/B16.47/B16.48/B16.36 Flanges , Carbon Steel flanges and Stainless Steel flanges according to ANSI , EN , MSS , AWWA , DIN , JIS , BS and GB for the world market. We are experienced & specialized in manufacturing special ring flanges and other forgings as per drawing provided by our clients.

We supply EN Code and Non Code Industrial flanges for the Petrochemical, Chemical & Waterworks industries. check our price before buying ANSI, EN, AWWA pipe flanges in ANSI B16.5/B16.47/B16.48/B16.36 Flanges , Carbon Steel flanges , Stainless Steel flanges and chrome steel flanges. Weld Neck flanges , flanges Slip on flanges , Blind flanges , Threaded flanges , socket weld flanges , Lap Joint flanges , Orifice Flanges in sizes 1/2" to 198" .

Infrastructure :

we at Riton Metal Industries have 200 sets of equipment, including 20 sets of modern forging equipment, 140 high precision machine tools, floor-type lathes, drills, vertical lathes and other machining equipment, 2 electrical heating furnaces, 5 heat treatment furnaces, 2 PMI detection equipment, tensile machines, impact testers, hardness testers, metallographic analyzers, digital UT flaw detectors, etc. Forging process available in house: ring rolling forging, open die forging

ANSI, ASME, ASA, B16.5 PLATE RING FLANGE RAISED FACE

ANSI, ASME, ASA, B16.5 150lb/sq.in. Plate Ring Flange RF
ø	D	b	g	m	J	k	Holes	l	Kg.
1/2"	88,9	11,1	34,9	30,2	22,3	60,3	4	15,9	0,400
3/4"	98,4	12,7	42,9	38,1	27,7	69,8	4	15,9	0,700
1"	107,9	14,3	50,8	49,2	34,5	79,4	4	15,9	0,800
1 1/4"	117,5	15,9	63,5	58,8	43,2	88,9	4	15,9	1,100
1 1/2"	127,0	17,5	73,0	65,1	49,5	98,4	4	15,9	1,400
2"	152,4	19,0	92,1	77,8	62,0	120,6	4	19,0	2,200
2 1/2"	177,8	22,2	104,8	90,5	74,7	139,7	4	19,0	3,600
3"	190,5	23,8	127,0	107,9	90,7	152,4	4	19,0	4,100
3 1/2"	215,9	23,8	139,7	122,2	103,4	177,8	8	19,0	5,200
4"	228,6	23,8	157,2	134,9	116,1	190,5	8	19,0	5,600
5"	254,0	23,8	185,7	163,6	143,8	215,9	8	22,2	6,300
6"	279,4	25,4	215,9	192,1	170,7	241,3	8	22,2	7,500
8"	342,9	28,6	269,9	246,1	221,5	298,4	8	22,2	12,600
10"	406,4	30,2	323,8	304,8	276,3	361,9	12	25,4	18,500
12"	482,6	31,7	381,0	365,1	327,1	431,8	12	25,5	28,000
14"	533,4	34,9	412,7	400,0	359,1	476,2	12	28,6	36,000
16"	596,9	36,5	469,9	457,2	410,5	539,7	16	28,6	46,000
18"	635,0	39,7	533,4	504,8	461,8	577,8	16	31,7	50,000
20"	698,5	42,9	584,2	558,8	513,1	635,0	20	31,7	64,000
22"	749,3	46,0	641,2	609,6	564,4	692,1	20	34,9	72,000
24"	812,8	47,6	692,1	663,6	615,9	749,3	20	34,9	89,000

ANSI, ASME, ASA, B16.5 300lb/sq.in. Plate Flange RF
ø	D	b	g	m	J	k	Holes	l	Kg.
1/2"	95,6	14,3	34,9	38,1	22,3	66,7	4	15,9	0,700
3/4"	117,5	15,9	42,9	47,6	27,7	82,5	4	19,0	1,100
1"	123,8	17,5	50,8	54,0	34,5	88,9	4	19,0	1,400
1 1/4"	133,3	19,0	63,5	63,5	43,2	98,4	4	19,0	1,800
1 1/2"	155,6	20,6	73,0	69,8	49,5	114,3	4	22,2	2,600
2"	165,1	22,2	92,1	84,1	62,0	127,0	8	19,0	3,400
2 1/2"	190,5	25,4	104,8	100,0	74,7	149,2	8	22,2	4,400
3"	209,5	28,6	127,0	117,5	90,7	168,3	8	22,2	6,100
3 1/2"	228,6	30,2	139,7	133,3	103,4	184,1	8	22,2	7,500
4"	254,0	31,7	157,2	146,0	116,1	200,0	8	22,2	10,100
5"	279,4	34,9	185,7	177,8	143,8	234,9	8	22,2	12,500
6"	317,5	36,5	215,9	206,4	170,7	269,9	12	22,2	14,100
8"	381,0	41,3	269,9	260,3	221,5	330,2	12	25,4	24,800
10"	444,5	47,6	323,8	320,7	276,3	387,3	16	28,6	37,100
12"	520,7	50,8	381,0	374,6	327,1	450,8	16	31,7	50,000
14"	584,2	54,0	412,7	425,4	359,1	514,3	20	31,7	70,000
16"	647,7	57,1	469,9	482,6	410,5	571,5	20	34,9	90,000
18"	711,2	60,3	533,4	533,4	461,8	628,6	24	34,9	112,000
20"	774,7	63,5	584,2	584,2	513,1	685,8	24	34,9	133,000
22"	838,2	66,7	641,2	641,2	564,4	742,9	24	41,3	197,000
24"	914,4	69,8	692,1	701,7	615,9	812,8	24	41,3	208,000

ANSI, ASME, ASA, B16.5 600lb/sq.in. Plate Flange RF
ø	D	b	g	m	J	k	Holes	l	Kg.
1/2"	95,2	14,3	34,9	38,1	22,3	66,7	4	15,9	0,800
3/4"	117,5	15,9	42,9	47,6	27,7	82,5	4	19,0	1,400
1"	123,8	17,5	50,8	54,0	34,5	88,9	4	19,0	1,600
1 1/4"	133,3	20,6	63,5	63,5	43,2	98,4	4	19,0	2,100
1 1/2"	155,6	22,2	73,0	69,8	49,5	114,3	4	22,2	3,100
2"	165,1	25,4	92,1	84,1	62,0	127,0	8	19,0	3,700
2 1/2"	190,5	28,6	104,8	100,0	74,7	149,2	8	22,2	5,400
3"	209,5	31,7	127,0	117,5	90,7	168,3	8	22,2	7,300
3 1/2"	228,6	34,9	139,7	133,3	103,4	184,1	8	25,4	8,900
4"	273,0	38,1	157,2	152,4	116,1	215,9	8	25,4	11,800
5"	330,2	44,4	185,7	188,9	143,8	266,7	8	28,6	24,500
6"	355,6	47,6	215,9	222,2	170,7	292,1	12	28,6	29,500
8"	419,1	55,6	269,9	273,0	221,5	349,2	12	31,7	43,000
10"	508,0	63,5	323,8	342,8	276,3	431,8	16	34,9	70,000
12"	558,8	66,7	381,0	400,0	327,1	488,9	20	34,9	86,000
14"	603,2	69,8	412,7	431,8	359,1	527,0	20	38,1	100,000
16"	685,8	76,2	469,9	495,3	410,5	603,2	20	41,3	142,000
18"	742,9	82,5	533,4	546,1	461,8	654,0	20	44,4	175,000
20"	812,8	88,9	584,2	609,6	513,1	723,9	24	44,4	232,000
22"	869,9	95,2	641,2	666,7	564,4	777,9	24	47,6	292,000
24"	939,8	101,6	692,1	717,5	615,9	838,2	24	50,8	330,000

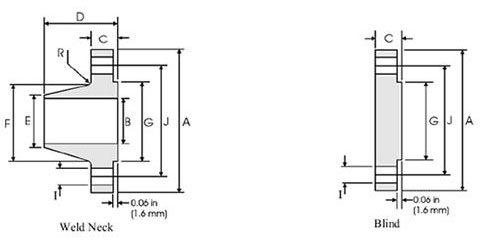

ANSI B16.47 FLANGE

ASME has incorporated most of the MSS-SP44 specification into B16.47 Series A and most of the API 605 Specification into B16.47 series B. They have also added Blinds to these two specs. You may note that these specs include only Weld Necks and Blinds. For Slip-On’s over 24” you must refer to either Industry Standard (which are not automatically covered by ASME) or Boiler Code Flanges.

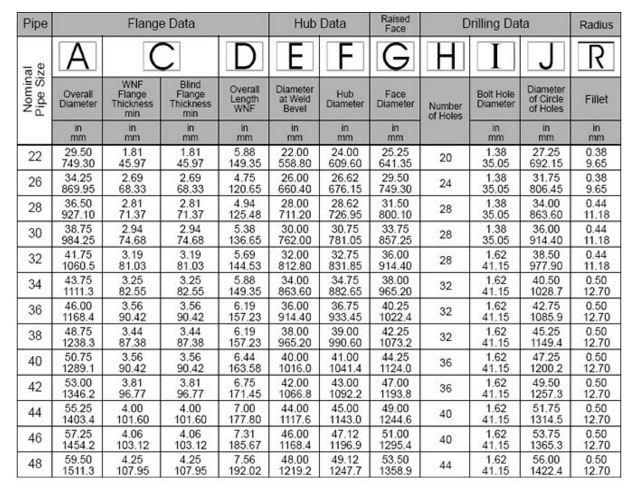

Dimensions

Why choose us for ANSI B16.5/B16.47/B16.48/B16.36 FLANGE?

On-Time Delivery Every Time
Competitive Prices
High Quality Product
Quick Response by Email & by Phone
An ISO 9001:2008 Certified Company

ANSI B16.5/B16.47/B16.48/B16.36 FLANGE Application<

Chemical
Petrochemical
Refineries
Fertilizers
Power Plant
Nuclear Power
Oil & Gas
Paper
Breweries
Cement
Sugar

Oil Mills
Mining
Construction
Shipbuilding
Steel Plant
Offshore
Defence
Ports
Railway
Engineering Co. &
Government Org. etc.

Surplus stock at Riton Metal Industries

ANSI/ASME steel flanges

EN/PED steel flanges

BS steel flanges

BS4504 code 111 steel weld neck flanges

JIS steel flanges

valve components

F316 8 inch valve seat rings for valves
Forged F316L semi-finished ball valve seat rings 18 inch
F51 forged steel valve seat rings
F316/F316L forged steel ball valve seat rings
F6A CL2 seat rings

F316 forged valve seat rings
A350LF2 forged valve seat rings
Special forged parts
Forged nonstandard steel parts

Plain washer, gasket

F304 steel gasket

Flange Standard

Types of ANSI B16.5/B16.47/B16.48/B16.36 Flanges

Our Specialization in Below ANSI B16.5/B16.47/B16.48/B16.36 Flanges
