EN Flanges Manufacturers in India

EN Flanges manufacturer, EN Slip On Flange, EN Welding Neck Flange, EN Blind Flange, EN Socket Weld Flanges, EN Plate Flange, EN Collar Flange, EN Threaded Flange Manufacturers in India. ANSI/EN B16.5, B16.47, B16.47, B16.36, B16.48 EN Flanges

EN Flanges manufacturer, EN Flanges suppliers, Seamless/Seam Welded EN Flanges, Fabricated EN Flanges, EN Flanges Suppliers in Indonesia, UAE, Saudi Arabia, Oman, Qatar, Australia.

Riton Metal Industries is specialized in manufacturing and supplying of EN Flanges , Pipe Fitting, Forged Fittings, Butt weld fittings, Flanges since 1991, we manufacture wide range of EN Flanges such as EN Slip On Flange, EN Welding Neck Flange, EN Blind Flange, EN Socket Weld Flanges, EN Plate Flange, EN Collar Flange, EN Threaded Flange etc. as per International standard like EN/ASTM/EN, we are supplying & exporting EN Flanges in seamless & welded both forms to more than 60 countries for over 2 decades, we have our dealers & distributors in Nigeria, Australia, Malaysia, Egypt, South Africa, Tanzania, Kenya, Mozambique, Angola, Gabon Germany, Turkey, France, United Kingdom, Italy, Netherlands, Iran , Iraq , Saudi Arabia, United Arab Emirates , Iisrael, Jordan, Oman, Kuwait, Qatar, Bahrain, Bangladesh, China, Indonesia, South Korea, Pakistan, Philippines, Singapore, Sri Lanka, Thailand, Vietnam, Brazil, Colombia, Argentina & United States of America, Riton Metal Industries is the only company in INDIA which is approved Manufacturer & supplier of EN Flanges in 300 top companies worldwide. Few of them are ORPIC, NIORDC, Saudi Aramco, SABIC, PIDMCO, GASCO, KNPC, Indian Oil, BPCL, HPCL, NTPC, BARC & Indian Navy, Riton Metal Industries is ISO 9001:2008, ISO 14001, OHSAS 18001 Certified Company since 2006 & PED approved Manufacturer since 2008, Riton Metal Industries is India's 6th largest Manufacturer, supplier & exporter of EN Flanges .

Riton Metal Industries is manufacturing & exporting pipe flange from 1/2” thru 200”, 150 lbs to 3000 lbs including EN Flanges , Carbon Steel flanges and Stainless Steel flanges according to ANSI , EN , MSS , AWWA , DIN , JIS , BS and GB for the world market. We are experienced & specialized in manufacturing special ring flanges and other forgings as per drawing provided by our clients.

We supply EN Code and Non Code Industrial flanges for the Petrochemical, Chemical & Waterworks industries. check our price before buying ANSI, EN, AWWA pipe flanges in EN Flanges , Carbon Steel flanges , Stainless Steel flanges and chrome steel flanges. Weld Neck flanges , flanges Slip on flanges , Blind flanges , Threaded flanges , socket weld flanges , Lap Joint flanges , Orifice Flanges in sizes 1/2" to 198" .

Infrastructure :

we at Riton Metal Industries have 200 sets of equipment, including 20 sets of modern forging equipment, 140 high precision machine tools, floor-type lathes, drills, vertical lathes and other machining equipment, 2 electrical heating furnaces, 5 heat treatment furnaces, 2 PMI detection equipment, tensile machines, impact testers, hardness testers, metallographic analyzers, digital UT flaw detectors, etc. Forging process available in house: ring rolling forging, open die forging

Types of EN flanges

Welding neck flanges
Plane welding flanges
Blind flanges
Loose flanges

EN Flange Manufacturer , supplies EN flanges according to EN 1092-1:2001, EN flanges in forged steel, Stainless Steel, Carbon steel etc. include type of Loose Plate Flanges, Blank Flanges,Weld-neck Flanges etc.

Specification of EN flanges, EN flange

Type: TYPE1(Plate Flanges); TYPE2(Loose Plate Flanges); TYPE5(Blank Flanges); TYPE11(Weld-neck Flanges); TYPE12(Hubbed Slip-on Flanges For Welding); TYPE13(Hubbed Threaded Flanges)
Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
Standard: EN1092-1:2001
Size: 1/2" NB TO 48"NB
Pressure: PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160
Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
E-catalogue: Available , please visit catalogue of flange
Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

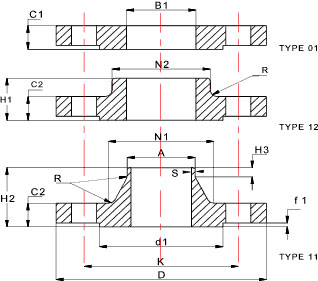

BS EN 1092-1 PN 16 Dimensions

DN	D	C1	C2	H1	H2	H3	R	A	N1	N2	B1	d1	f1	S
10	90	14	14	20	35	6	4	17,2	28	30	18	40	2	1,8
15	95	14	14	20	35	6	4	21,3	32	35	22	45	2	2,0
20	105	14	14	24	38	6	4	26,9	39	45	27,5	58	2	2,3
25	115	16	16	24	38	6	4	33,7	46	52	34,5	68	2	2,6
32	140	18	16	26	40	6	6	42,4	56	60	43,5	78	2	2,6
40	150	18	16	26	42	7	6	48,3	64	70	49,5	88	2	2,6
50	165	19	18	28	45	8	6	60,3	75	84	61,5	102	2	2,9
65	185	20	18	32	45	10	6	76,1	90	104	77,5	122	2	2,9
80	200	20	20	34	50	10	8	88,9	105	118	90,5	138	2	3,2
100	220	22	20	40	52	12	8	114,3	131	140	116	158	2	3,6
125	250	22	22	44	55	12	8	139,7	156	168	141,5	188	2	4,0
150	285	24	22	44	55	12	10	168,3	192	195	170,5	212	2	4,5
200	340	26	24	44	62	16	10	219,1	235	246	221,5	268	2	5,6
250	405	29	26	46	70	16	12	273	292	298	276,5	320	2	6,3
300	460	32	28	46	78	16	12	323,9	344	350	327,5	378	2	7,1
350	520	35	30	57	82	16	12	355,6	390	400	359	438	2	8,0
400	580	38	32	63	85	16	12	406,4	445	456	411,0	490	2	8,0
450	640	42	40	68	87	16	12	457,0	490	502	462,0	550	2	8,0
500	715	46	44	73	90	16	12	508,0	548	559	513,5	610	2	8,0
600	840	52	54	83	95	18	12	610,0	652	658	616,5	725	2	8,8
700	910	-	36	83	100	18	12	711,0	755	760	-	795	2	8,8
800	1025	-	38	90	105	20	12	813,0	855	864	-	900	2	10,0
900	1125	-	40	94	110	20	12	914,0	955	968	-	1000	2	10,0
1000	1255	-	42	100	120	22	16	1016,0	1058	1072	-	1115	2	10,0
1200	1485	-	48	-	130	30	16	1219,0	1262	-	-	1330	2	12,5
1400	1685	-	52	-	145	30	16	1420,0	1465	-	-	1530	2	14,2
1600	1930	-	58	-	160	35	16	1620,0	1668	-	-	1750	2	16,0
DN	D	C1	C2	H1	H2	H3	R	A	N1	N2	B1	d1	f1	S

Flange Bolting

DN	K	L	No	Size
mm	mm	mm	-	mm
10	60	14	4	M12
15	65	14	4	M12
20	75	14	4	M12
25	85	14	4	M12
32	100	18	4	M16
40	110	18	4	M16
50	125	18	4	M16
65	145	18	8**	M16
80	160	18	8	M16
100	180	18	8	M16
125	210	18	8	M16
150	240	22	8	M20
200	295	22	12	M20
250	355	26	12	M24
300	410	26	12	M24
350	470	26	16	M24
400	525	30	16	M27
450	585	30	20	M27
500	650	33	20	M30
600	770	36	20	M33
700	840	36	24	M33
800	950	39	24	M36
900	1050	39	28	M36
1000	1170	42	28	M39
1200	1390	48	32	M45
1400	1590	48	36	M45
1600	1820	56	40	M52
DN	K	L	No	Size

Surplus stock at Riton Metal Industries

ANSI/ASME steel flanges

EN/PED steel flanges

BS steel flanges

BS4504 code 111 steel weld neck flanges

JIS steel flanges

valve components

F316 8 inch valve seat rings for valves
Forged F316L semi-finished ball valve seat rings 18 inch
F51 forged steel valve seat rings
F316/F316L forged steel ball valve seat rings
F6A CL2 seat rings

F316 forged valve seat rings
A350LF2 forged valve seat rings
Special forged parts
Forged nonstandard steel parts

Plain washer, gasket

F304 steel gasket

Flange Standard

Types of ASME Flanges

EN Slip On Flange
EN Welding Neck Flange
EN Long Welding Neck Flange
EN Blind Flange
EN Lap Joint Flange
EN Socket Weld Flanges
EN Threaded Flange
EN Reducing Flange
EN Square Flange
EN Expander Flange
EN Groove & Tongue Flange
EN Spades Ring Spacers Flange
EN Screwed Flange
EN Flange Facing Type & Finish

EN Collar Flange
EN Flat Face Flange
EN Raised Face Flanges
EN Ring Type Joint Flange
EN Spectacle Blind Flanges
EN Plate Flange
EN Flat Flange
EN Orifice Flange
EN Weldo / Nipo Flange
EN Loose Flange
EN High Hub Blinds Flange
EN Weld Neck Flange Series A or B
EN Lip type flange
EN Puddle Flange

Our Specialization in Below EN Flanges

bs en 1092 flange table
bs en flange
bs en flange standard
en 10222-2 flange
en 1092 flange material
en 1092 flange standard
en 1092 flange table
en 1092 flange tables
en 1092 flange types
en 1092-1 b1 flange
en 1092-1 flange material
en 1092-1 flange specifications
en 1092-1 flange types
en 13445 flange
en 867-4 flange
en flange ratings
en flange specification
en flange standard
en flange tables
en flanges
flange din 2633 en 1092-1
flange en 10222-5

en 1092 pn 40 flange dimensions
en 1092 pn10 flange dimensions
en 1092 pn16 flange dimensions
en 1092 flange weight
en 1092-1 flange dimensions pn16
en 1092-1 pn 40 flange dimensions
en 1092-3 flange dimension
en flange dimensions
en flanges dimensions
f flange dimensions
flange en 1092 1
flanges en 1092-2
flanges en 1092-2
flanges en 1759
flanges en 1759-1
bs en flange dimensions
c flange dimensions
din en 1092-2 flange dimensions
en 1092 2 flange dimensions
en 1092 flange dimensions
flange uni en 1092-2
flanges en 1092 1

flange en 1092 1 type 12
flange en 1092 2 pn16
flange en 1092 pn 40
flange en 1092 pn16
flange en 1092 type b
flange en 1092.1
flange en 1092-1 materiali
flange en 1092-1 pn10
flange en 1092-1 pn16
flange en 1092-1 type 01
flange en 1092-1 type 11
flange en 1092-1 type 11 b1
flange en 1092-2 pn 10
flange en 1092-4
flange norma en 1092-1
flange standard en 1092-1
flange uni en
flange uni en 1092
flange uni en 1092-1
flange uni en 1092-1 pn 40
flange uni en 1092-1 pn10
flange uni en 1092-1 pn16

Type Of EN Flanges Available At Best Price

EN Slip On Flange	EN Welding Neck Flange	EN Long Welding Neck Flange	EN Blind Flange	EN Lap Joint Flange
EN Socket Weld Flanges	EN Threaded Flange	EN Collar Flange	EN Flat Face Flange	EN Raised Face Flanges
EN Ring Type Joint Flange	EN Spectacle Blind Flange	EN Plate Flange	EN Flat Flange	EN Reducing Flange
EN Square Flange	EN Expander Flange	EN Screwed Flange	EN Flange Facing Type & Finish	EN Orifice Flange
EN Weldo / Nipo Flange	EN Loose Flange	EN High Hub Blinds Flange	EN Weld Neck Flange Series A or B	EN Lip type flange

Steel Flanges Manufacturing Process

EN Flanges, EN Blind Flange, EN Threaded Flange, EN Plate Flange Price List


EN Flange US $800-1000 / Metric Ton	Slip on flanges EN 1092-1 US $1500-1600 / Ton	EN Orifice Flange US $950-1200 / Ton

EN Lap Joint Flange US $1000-3000 / Ton	EN Slip On Flange US $800-8000 / Ton	EN Welding Neck Flange US $1500-1600 / Ton

EN Blind Flange US $1000-2500 / Ton	EN Threaded Flange US $1000-3000 / Ton	EN Collar Flange US $1500-1600 / Ton

EN Flat Face Flange US $1000-3000 / Ton	EN Raised Face Flanges US $1000-1500 / Ton	EN Ring Type Joint Flange US $700-2000 / Ton

EN Spectacle Blind Flanges US $800-8000 / Ton	EN Plate Flange US $1500-1600 / Ton	EN Flat Flange US $860-1060 / Ton

We have supplied EN Flanges to below countries

Malaysia	Angola	Netherlands
Nigeria	Gabon	Iran
Egypt	Germany	Iraq
South Africa	Turkey	United Arab Emirates
Tanzania	France	israel
Kenya	United Kingdom	Jordan
Algeria	Italy	Oman
Uganda	Philippines	Kuwait
Ghana	Singapore	Qatar
Mozambique	Sri Lanka	China
Morocco	Thailand	Indonesia
Saudi Arabia	Vietnam	Japan
Canada	United States	Pakistan
Mexico

EN Flanges, best quality EN Flanges, India’s largest EN Flanges manufacturer, wide variety of EN Flanges, EN Flanges India, EN Flanges distributor Mumbai, EN Flanges traders, prime quality EN Flanges, Source for EN Flanges, specialize in EN Flanges, EN Flanges with Test Certificate, EN Flanges at dealer price.
