Riton Metal Industries is specialized in manufacturing and supplying of Lapped Joint Flanges , Flanges, Pipe Fitting, Forged Fittings, Butt weld fittings, Flanges in Stainless steel, alloy Steel & carbon Steel since 1991, we manufacture wide range of Lapped Joint Flanges such as SS Lapped Joint Flange, Alloy Steel Lapped Joint Flange, Carbon Steel Lapped Joint Flange, Inconel Lapped Joint Flange, Monel Lapped Joint Flange, hastelloy Lapped Joint Flange etc. as per International standard like ASME/ASTM/API, we are supplying & exporting Lapped Joint Flanges in seamless & welded both forms to more than 60 countries for over 2 decades, we have our dealers & distributors in Nigeria, Australia, Malaysia, Egypt, South Africa, Tanzania, Kenya, Mozambique, Angola, Gabon Germany, Turkey, France, United Kingdom, Italy, Netherlands, Iran , Iraq , Saudi Arabia, United Arab Emirates , Iisrael, Jordan, Oman, Kuwait, Qatar, Bahrain, Bangladesh, China, Indonesia, South Korea, Pakistan, Philippines, Singapore, Sri Lanka, Thailand, Vietnam, Brazil, Colombia, Argentina & United States of America, Riton Metal Industries is the only company in INDIA which is approved Manufacturer & supplier of Lapped Joint Flanges in 300 top companies worldwide. Few of them are ORPIC, NIORDC, Saudi Aramco, SABIC, PIDMCO, GASCO, KNPC, Indian Oil, BPCL, HPCL, NTPC, BARC & Indian Navy, Riton Metal Industries is ISO 9001:2008, ISO 14001, OHSAS 18001 Certified Company since 2006 & PED approved Manufacturer since 2008, Riton Metal Industries is India's 6th largest Manufacturer, supplier & exporter of Lapped Joint Flanges .
Riton Metal Industries is manufacturing & exporting pipe flange from 1/2” thru 200”, 150 lbs to 3000 lbs including carbon Steel flanges , Lapped Joint Flanges and alloy Steel flanges according to ANSI , API , MSS , AWWA , DIN , JIS , BS and GB for the world market. We are experienced & specialized in manufacturing special ring flanges and other forgings as per drawing provided by our clients.
we at Riton Metal Industries have 200 sets of equipment, including 20 sets of modern forging equipment, 140 high precision machine tools, floor-type lathes, drills, vertical lathes and other machining equipment, 2 electrical heating furnaces, 5 heat treatment furnaces, 2 PMI detection equipment, tensile machines, impact testers, hardness testers, metallographic analyzers, digital UT flaw detectors, etc.
Forging process available in house: ring rolling forging, open die forging
Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, BS 4504, EN1092, UNI 2277/2278, DIN, Custom Drawings
Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64, 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS etc.
Special Alloy Lap joint flanges: Nickel Alloys Lap joint flanges: Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II). Duplex, Super Duplex Lap joint flanges: ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61, 2205 (UNS No. S31803), 2507 (UNS No.S32750)
Copper Alloy Lap joint flanges: UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C71500 (Cu -Ni- 70/30)
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services: CNC Machining, Customised Flanges
MSS SP-6 – ‘Standard Finishes for Contact Faces of Pipe Flanges and Connecting End Flanges of Valves and Fittings’
Lap Joint Flanges Manufacturers in India
Lap Joint Flange (LJ Flanges) Manufacturer in India manufacture Class 150 to Class 2500 LJ Flange, type of sealing face RF, FF & RTJ, material in kinds of carbon steel, low temperature carbon steel, alloy steel, stainless steel, Inconel & Hastelloy.
LJ Flange is used with stud ends, according to ANSI B16.5/ANSI B16.47 Series A/ANSI B16.47 Series B American Standard. We also manufacture as per DIN Standard, BS Standard, JIS Standard, GOST Standards depends upon our customers requirements & Drawings.
Lap Joint Flanges (LJ Flanges): 316L Stainless Steel Lap Joint Flanges Manufacturers in India
ASTM A182 F304 Lap Joint Flange 4 INCH 150# Forged
ASTM A182 F304 lap Joint Flange Manufacturer in INDIA manufacturing SS 304 Lap Joint Flange & Offering special discounted price on ASTM A182 F304 lap Joint Flange, 4 Inch, 150#, forged.
Ready Stock of 316L Stainless Steel Lap Joint Flanges at our Warehouse Mumbai,India
316L Stainless Steel Lap Joint Flanges Manufacturer in India
ASTM A182 Lap Joint Flanges Manufacturer in India Manufacturing ASTM A182 F316L Lap Joint Flange in India and offering great deal on SS 316L Lap joint Flange,check our Price list of 316/316L lap joint flanges, 2 Inch, 300LB, ANSI B16.5, RF Face.
Ready Stock of SS 316L Lap Joint Flanges at our Warehouse Mumbai,India
SS 316L Lap Joint Flanges
ASTM A182 Lap Joint Flange Manufacturer in India offering special price in of ASTM A182 F316L Lap Joint Flange in India & cheaper to China, 150 LB, 1 1/2 inch (DN 40), ANSI B16.5, and RF Face.

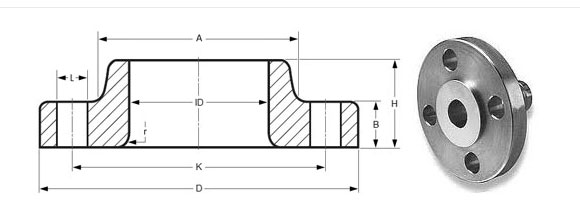

Lap Joint Flange Dimensions & Tolerances
NPS 1/2 - ID = 22.9 - r = 3
Class
150
300
400
600
900
1500
2500
Diameter - A
30
38
38
38
38
38
43
Diameter - D
90
95
95
95
120
120
135
Thickness - B
11.2
14.3
14.3
14.3
22.3
22.3
30.2
Diameter - G
35.1
35.1
35.1
35.1
35.1
35.1
35.1
Diameter - K
60.3
66.7
66.7
66.7
82.6
82.6
88.9
Height - H
16
22
22
22
32
32
40
Bolt Holes
4
4
4
4
4
4
4
Diameter - L
15.9
15.9
15.9
15.9
22.2
22.2
22.2
Stud Bolts Diameter x Length
Diameter (in)
1/2
1/2
1/2
1/2
3/4
3/4
3/4
Length (mm)
55
65
75
75
110
110
120
Dimensional Tolerances of Lap Joint Flanges ASME B16.5
Outside Diameter ≤ 24 = 1.6 mm | > 24 = ± 3.2 mm
Inside Diameter ≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / - 0 mm
Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm
Outside Diameter of Hub ≤ 12 = + 2.4 mm / - 1.6 mm | ≥ 14 = ± 3.2 mm
Diameter of Counterbore Same as for Inside Diameter
Drilling Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
Thickness ≤ 18 = + 3.2 mm / - 0 | ≥ 20 = + 4.8 mm / - 0
Length thru Hub ≤ 18 = + 3.2 mm / - 0.8 mm | ≥ 20 = + 4.8 mm / - 1.6 mm
ASME/ ANSI B16.5 Lap Joint Pipe Flanges Manufacturing Materials :
ANSI ASME B16.5 Lap Joint Flanges Dimensions ANSI ASME B16.5 Class 300 Lap Joint Flanges Dimensions ANSI ASME B16.5 Class 150 Lap Joint Flanges Dimensions ANSI ASME B16.5 Class 400 Lap Joint Flanges Dimensions ANSI ASME B16.5 Class 600 Lap Joint Flanges Dimensions ANSI ASME B16.5 Class 900 Lap Joint Flanges Dimensions ANSI ASME B16.5 Class 1500 Lap Joint Flanges Dimensions ANSI ASME B16.5 Class 2500 Lap Joint Flanges Dimensions
ansi b16.5 lap joint flange class 150 to 2500 lbs US $0.15-10 / Piece ( FOB Price)
Titanium lap joint flanges ANSI B16.5 Gr9 for industrial using US $19-150 / Piece ( FOB Price)
Steel Flanges Manufacturing Process
