Riton Metal Industries is specialized in manufacturing and supplying of Spacer Ring / Spade Flange , Pipe Fitting, Forged Fittings, Butt weld fittings, Flanges in Stainless steel, alloy Steel & carbon Steel since 1991, we manufacture wide range of Spacer Ring / Spade Flange such as SS Spacer Ring / Spade Flange, Stainless Steel Spacer Ring / Spade Flange, Alloy Steel Spacer Ring / Spade Flange, Carbon Steel Spacer Ring / Spade Flange, Inconel Spacer Ring / Spade Flange, Monel Spacer Ring / Spade Flange, hastelloy Spacer Ring / Spade Flange etc. as per International standard like ASME/ASTM/API, we are supplying & exporting Spacer Ring / Spade Flange in seamless & welded both forms to more than 60 countries for over 2 decades, we have our dealers & distributors in Nigeria, Australia, Malaysia, Egypt, South Africa, Tanzania, Kenya, Mozambique, Angola, Gabon Germany, Turkey, France, United Kingdom, Italy, Netherlands, Iran , Iraq , Saudi Arabia, United Arab Emirates , Iisrael, Jordan, Oman, Kuwait, Qatar, Bahrain, Bangladesh, China, Indonesia, South Korea, Pakistan, Philippines, Singapore, Sri Lanka, Thailand, Vietnam, Brazil, Colombia, Argentina & United States of America, Riton Metal Industries is the only company in INDIA which is approved Manufacturer & supplier of Spacer Ring / Spade Flange in 300 top companies worldwide. Few of them are ORPIC, NIORDC, Saudi Aramco, SABIC, PIDMCO, GASCO, KNPC, Indian Oil, BPCL, HPCL, NTPC, BARC & Indian Navy, Riton Metal Industries is ISO 9001:2008, ISO 14001, OHSAS 18001 Certified Company since 2006 & PED approved Manufacturer since 2008, Riton Metal Industries is India's 6th largest Manufacturer, supplier & exporter of Spacer Ring / Spade Flange .
Riton Metal Industries is manufacturing & exporting pipe flange from 1/2” thru 200”, 150 lbs to 3000 lbs including carbon Steel flanges , Spacer Ring / Spade Flange and alloy Steel flanges according to ANSI , API , MSS , AWWA , DIN , JIS , BS and GB for the world market. We are experienced & specialized in manufacturing special ring flanges and other forgings as per drawing provided by our clients.
we at Riton Metal Industries have 200 sets of equipment, including 20 sets of modern forging equipment, 140 high precision machine tools, floor-type lathes, drills, vertical lathes and other machining equipment, 2 electrical heating furnaces, 5 heat treatment furnaces, 2 PMI detection equipment, tensile machines, impact testers, hardness testers, metallographic analyzers, digital UT flaw detectors, etc.
Forging process available in house: ring rolling forging, open die forging

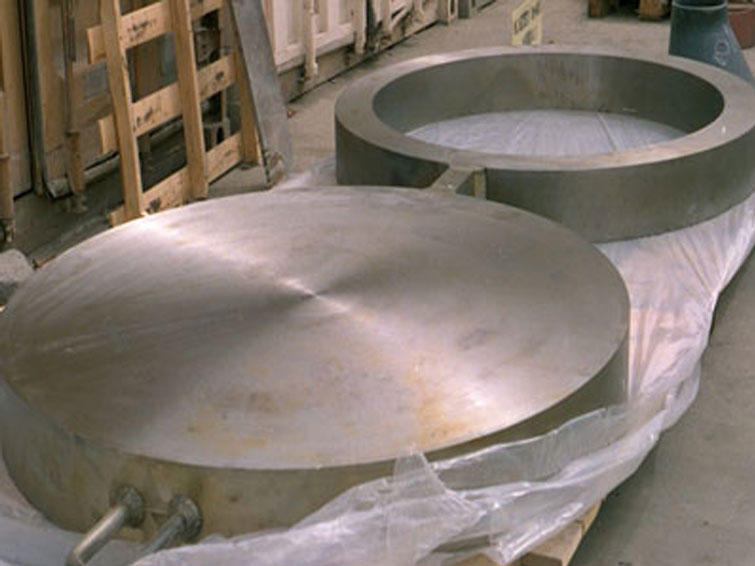

Ready Stock of Spacer Ring Spade Flange at our Warehouse Mumbai,India
Spacer Ring / Spade Flange :
Spacer Ring / Spade Flange Manufacturer in India is Manufacturing Class 150 to Class 2500, in materials like Carbon Steel, low Temperature Carbon Steel, Alloy Steel, Stainless Steel, Inconel & Hastelloy.
Spacer Ring / Spade Flange seems like half of Spectacle Blind Flange. Spacer Ring has a bore and Spade Flange without bore, Riton Metal Industries is manufacturing Spacer Ring / Spade Flange in stainless Steel & Alloy Steel as per ANSI B16.48 American Standard and specifications of our client & their drawings.
Ready Stock of ASTM A182 Spacer Ring / Spade Flange at our Warehouse Mumbai,India
ASTM A182 Spacer Ring / Spade Flange, 300 LB, 4 INCH
Stainless Steel Spacer Ring / Spade Flange Manufacturers in India
ASTM A182 Spacer Ring Flange / Spade Flange Manufacturer & Suppliers in South Africa, Indonesia, Singapore, Malaysia, Saudi Arabia, Kuwait, Qatar, UAE, Dubai, Bahrain, Egypt, Turkey, UK, USA and Canada offering ASTM A182 Spacer Ring Flange / Spade Flange, 4 Inch, 300LB, ANSI B16.48. at Special discounted price on surplus stock of SS Spacer Ring Flange or SS Spade Flange, check our price list of Stainless Steel Spacer Ring Flange, Alloy Steel Spacer Ring Flange price list, Carbon Steel Spacer ring Flange price list.
Specification of ASME B16.5 Spades Ring Spacers Flanges
Special Alloy ASME B16.5 Spades Ring Spacers Flanges: Nickel Alloys ASME B16.5 Spades Ring Spacers Flanges: Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II). Duplex, Super Duplex ASME B16.5 Spades Ring Spacers Flanges: ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61, 2205 (UNS No. S31803), 2507 (UNS No.S32750)
Copper Alloy ASME B16.5 Spades Ring Spacers Flanges: UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500, UNS No. C 70600 (Cu -Ni- 90/10), C71500 (Cu -Ni- 70/30)

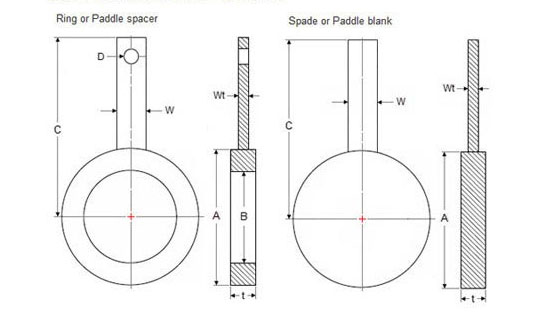

Spacer Ring / Spade Flange - Dimensions
Spades and Ring Spacers are basically the same as Spectacle Blinds Flange
Spades Rings Spacers Flanges
Class 150
NPS
Outside Ø A
Inside Ø B
Center to End C
Thickness t
Handle Width W
1/2
45
16
126
3
32
3/4
54
21
131
3
32
1
64
27
136
3
32
1¼
73
42
145
6.4
32
1½
83
48
145
6.4
32
2
102
61
155
6.4
32
2½
107
73
170
6.4
32
3
133
89
170
6.4
32
3½
159
102
202
9.7
38
4
172
114
202
9.7
38
5
194
141
225
9.7
38
6
219
168
225
12.7
38
8
276
219
267
12.7
38
10
337
273
322
15.7
44
12
406
324
357
19.1
44
14
448
356
378
19.1
44
16
511
406
410
22.4
44
18
546
457
427
25.4
51
20
603
508
455
28.4
51
24
714
610
512
31.8
51
Class 300 - Spades Rings Spacers Flanges
NPS
Outside Ø A
Inside Ø B
Center to End C
Thickness t
Handle Width W
1/2
51
16
129
6.4
32
3/4
64
21
136
6.4
32
1
70
27
139
6.4
32
1¼
79
42
150
6.4
32
1½
92
48
150
6.4
32
2
108
61
158
9.7
32
2½
127
73
177
9.7
32
3
146
89
177
9.7
32
3½
162
102
205
12.7
38
4
178
114
205
12.7
38
5
213
141
240
15.7
38
6
248
168
240
15.7
38
8
305
219
281
22.4
38
10
359
273
333
25.4
44
12
419
324
363
28.4
44
14
483
356
395
31.8
44
16
536
406
422
38.1
44
18
594
457
450
41.1
51
20
651
508
480
44.5
51
24
772
610
540
50.8
51
Class 600 - Spades Rings Spacers Flanges
NPS
Outside Ø A
Inside Ø B
Center to End C
Thickness t
Handle Width W
1/2
51
16
129
6.4
32
3/4
64
21
136
6.4
32
1
70
27
139
6.4
32
1¼
79
37
150
9.7
32
1½
92
43
150
9.7
32
2
108
55
158
9.7
32
2½
127
67
177
12.7
32
3
146
83
177
12.7
32
3½
159
96
211
15.7
38
4
191
108
211
15.7
38
5
238
135
248
19.1
38
6
264
162
248
22.4
38
8
318
212
288
28.4
38
10
397
265
352
35.1
44
12
454
315
381
41.1
44
14
489
346
398
44.5
44
16
562
397
435
50.8
44
18
610
448
459
53.8
51
20
679
497
493
63.5
51
24
787
597
547
73.2
51
Class 900 - Spades Rings Spacers Flanges
NPS
Outside Ø A
Inside Ø B
Center to End C
Thickness t
Handle Width W
1/2
60
16
134
6.4
32
3/4
67
21
137
6.4
32
1
76
27
142
6.4
32
1¼
86
37
151
9.7
32
1½
95
43
151
9.7
32
2
140
55
174
12.7
32
2½
162
67
186
12.7
32
3
165
83
186
15.7
32
4
203
108
217
19.1
38
5
244
135
259
22.4
38
6
286
162
259
25.4
38
8
356
212
307
35.1
38
10
432
265
370
41.1
44
12
495
315
401
47.8
44
14
518
346
412
53.8
44
16
572
397
440
60.5
44
18
635
448
471
66.5
51
20
696
497
501
73.2
51
24
835
597
571
88.9
51
Class 1500 - Spades Rings Spacers Flanges
NPS
Outside Ø A
Inside Ø B
Center to End C
Thickness t
Handle Width W
1/2
61
16
135
6.4
32
3/4
67
21
137
9.7
32
1
76
27
142
9.7
32
1¼
86
35
151
9.7
32
1½
95
41
151
12.7
32
2
140
53
174
12.7
32
2½
162
63
190
15.7
32
3
172
78
190
19.1
32
4
206
102
219
22.4
38
5
251
128
256
28.4
38
6
279
154
256
35.1
38
8
349
203
303
41.1
38
10
432
255
370
50.8
44
12
518
303
412
60.5
44
14
575
333
442
66.5
44
16
638
381
472
76.2
44
18
702
429
504
85.9
51
20
752
478
530
95.3
51
24
899
575
603
111.3
51
Class 2500 - Spades Rings Spacers Flanges
NPS
Outside Ø A
Inside Ø B
Center to End C
Thickness t
Handle Width W
1/2
67
16
137
9.7
32
3/4
73
21
140
9.7
32
1
83
27
145
9.7
32
1¼
102
35
161
12.7
32
1½
114
41
161
15.7
32
2
143
53
175
15.7
32
2½
165
63
201
19.1
32
3
194
78
201
22.4
32
4
232
102
232
28.4
38
5
276
128
273
35.1
38
6
314
154
273
41.1
38
8
384
198
321
53.8
38
10
473
248
390
66.5
44
12
546
289
427
79.2
44
Spade Handles shall be solid with no openings.
Ring Spacer Handles shall have a single through indicator hole located near the end of the handle. The hole diameter shall not be less than 12 mm.
Depending on a customer specification, some dimensions can be different from what on this page is defined.
Wt = Thickness of the handle should be 6 mm minimum, or equal to Thickness (t) if less than 6 mm.
Spades and Ring Spacers should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges and piping involved.
Dimensions are in millimeters unless otherwise indicated.
Spades & Ring Spacers according to ASME B16.48 may be used for installation between ASME B16.5 flanges.
Spades and Spacers Flange
Size Range: 15mm- 1500mm (1/2”- 60”)
Ratings: 150lb-2500lb to suit ASME B16.5
Sealing Type: flat face, raised face, ring joint
Sealing Finish: Spiral Finish 3.2-6.3µm for facings
Materials: A516 GR70, AS1548 –PT460 (NR), A105, LF2, 304/304L, 316/316L, UNS31803. Other materials on request
Custom items: delivery usually 10-20 days
Also called: Line Blinds, Spacers and Blanks, Paddle Blinds, Spade Blinds
Spades :
Spades and Ring Spacers are basically the same as Spectacle Blinds, except that both are not attached to each other. Spades and Spacers be applied in systems where maintenance is often not necessary, or in applications with large pipe sizes. Depending on the flange size and the Pressure Class, Spades can weigh hundreds of pounds. To prevent unnecessary weight to a flange connections, usually will be chosen not for a Spectacle Blind, but for 2 separate parts.we are one of the reliable Spacer Blind Manufacturers In India.
Ring Spacer :
So as for the Spectacle Blind already described, maintenance on a pipe system can be a reason to temporarily replace a Ring Spacer for a Spade. By loosening of all bolts, and half of the bolts temporarily, the Spade or Spacer can be placed. After replacing the gaskets (new gaskets are to recommended), the bolts can be re-assembled and tightened.
What should never lack is, that in the handle, the diameter and the Pressure Class of a Spade or Spacer is engraved; this applies also for the Spectacle Blind.. A small problem is that we basically cannot see, or a Spade or a Spacer mounted between the flanges. Therefore the handles are often specially marked, or both have a different design; a customer often provides its own specification.
